Description

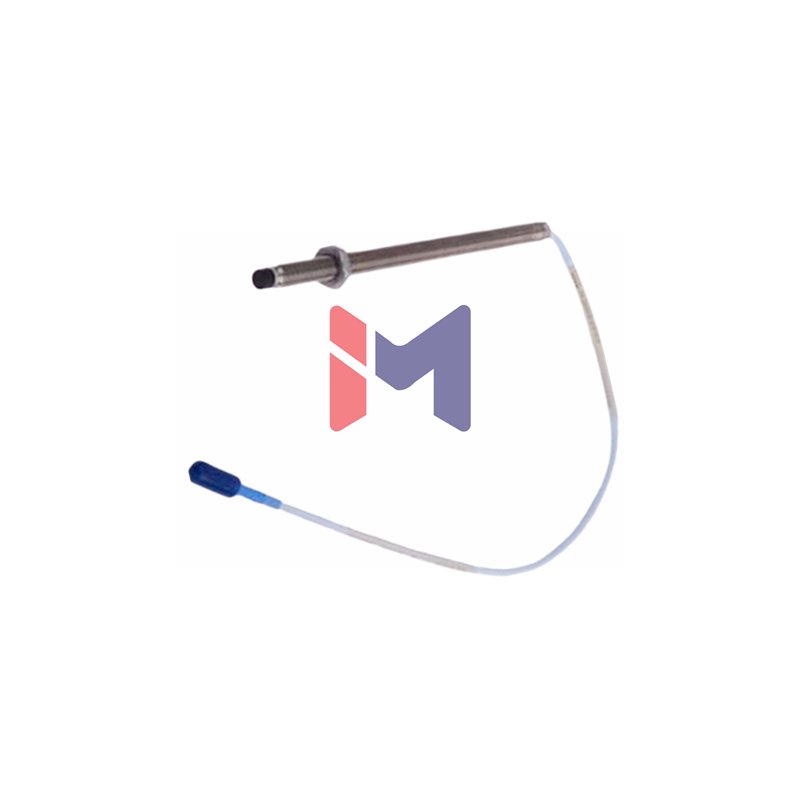

Bently Nevada 3300 NSv Proximity Probe: Precision Measurement Redefined
Experience unparalleled accuracy with the Bently Nevada 3300 NSv Proximity Probe, engineered for critical machinery monitoring in demanding environments. This advanced sensor offers superior chemical resistance and enhanced performance characteristics, making it the ideal choice for process compressor applications and other industrial settings where reliability is paramount.
Technical Specifications
- Brand: Bently Nevada
- Model: 330905-05-10-05-01-05
- Electrical Characteristics:
- DC Resistance: 4.0 ± 0.5 Ω (0.5 m cable)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Cable Capacitance: 69.9 pF/m typical
- Mechanical Specifications:
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Thread Specification: M10×1
- Case Length: 100 mm
- Cable Length: 0.5 meter (20 inches)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Environmental Ratings:
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Sealing: Viton O-ring for differential pressure protection
Complete Suffix Breakdown (Click to Expand)
- 330905 – Base Model Number
- -05 – 50 mm Unthreaded Length
- -10 – 100 mm Overall Case Length
- -05 – 0.5 Meter Cable Length
- -01 – Miniature Coaxial ClickLoc Connector
- -05 – Multiple Agency Approvals
Installation & Application Data
- Mounting Torque: Finger tight (maximum 0.56 N·m)
- Thread Engagement: Maximum 15 mm
- Target Requirements:
- Minimum target diameter: 8.9 mm (0.35 in)
- Recommended target diameter: 13 mm (0.5 in)
- Field Wiring: Use shielded triad cable (0.2-1.5 mm²)
- Maximum Cable Length: 305 meters (1000 feet)
Packaging & Shipping Information
- Condition: New & Original in Factory Packaging
- Shipping Methods: FedEx, UPS, DHL available
- Warranty: 12 Months Factory Warranty
