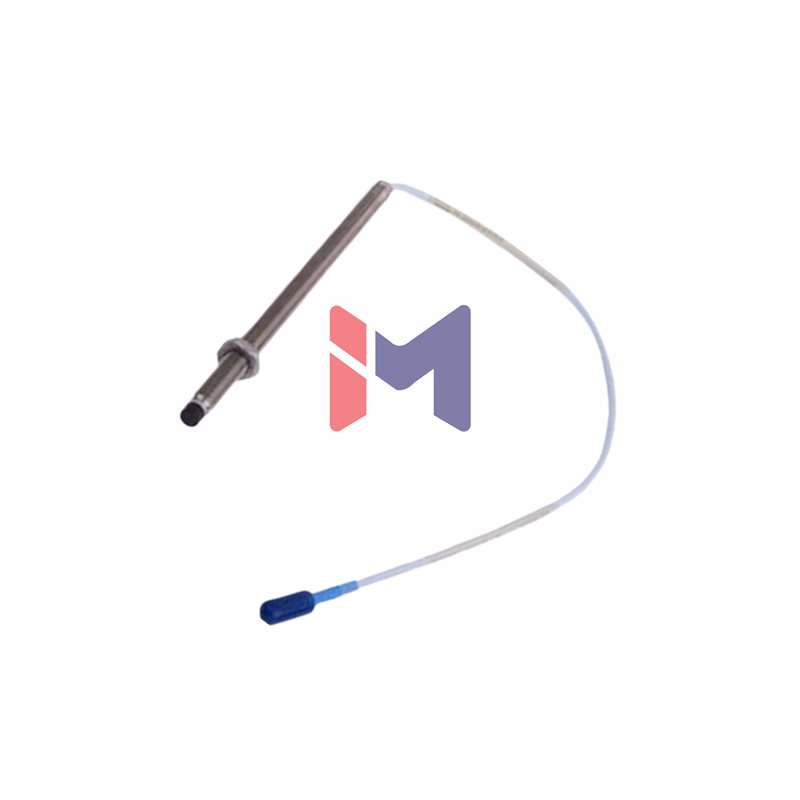

Bently Nevada 330905-05-10-05-01-00: Industrial Vibration Excellence
🔍 Complete Product Breakdown
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330905-05-10-05-01-00
- Configuration Profile:
- → Base Number: 330905 (M10X1 Thread)
- → Unthreaded: -05- (50 mm)
- → Case Size: -10- (100 mm)
- → Cable: -05- (0.5 Meter)
- → Connector: -01- (ClickLoc Standard)
- → Approval: -00- (Not Required)
- Condition: Factory New, Original Sealed Packaging
- Warranty: 12 Months Comprehensive Coverage
- Global Shipping: FedEx | UPS | DHL Express
⚙️ Enhanced Technical Specifications
- Electrical Performance:
- ● DC Resistance: 4.0 ± 0.5 Ω
- ● Center Conductor: 0.220 Ω/m
- ● Shield Resistance: 0.066 Ω/m
- ● Capacitance: 69.9 pF/m typical
- ● Impedance: 75 Ω coaxial
- Measurement Capabilities:
- ● Linear Range: 1.5 mm (60 mils)
- ● Optimal Gap: 1.0 mm (40 mils)
- ● Sensitivity: 7.87 V/mm (±12.5%/-20%)
- ● Linearity: < ±0.06 mm deviation
- ● Frequency: 0-10 kHz (±3 dB)
- ● Target Size: 8.9 mm min (13 mm recommended)
- Mechanical Properties:
- ● Thread: M10x1 metric
- ● Case: AISI 304 stainless steel
- ● Tip: Polyphenylene Sulfide (PPS)
- ● Torque: 0.56 N•m max
- ● Bend Radius: 25.4 mm min
- Environmental Ratings:
- ● Operation: -52°C to +177°C
- ● Storage: -52°C to +177°C
- ● Sealing: Viton O-ring
- ● Wiring: Up to 305 meters field wiring
