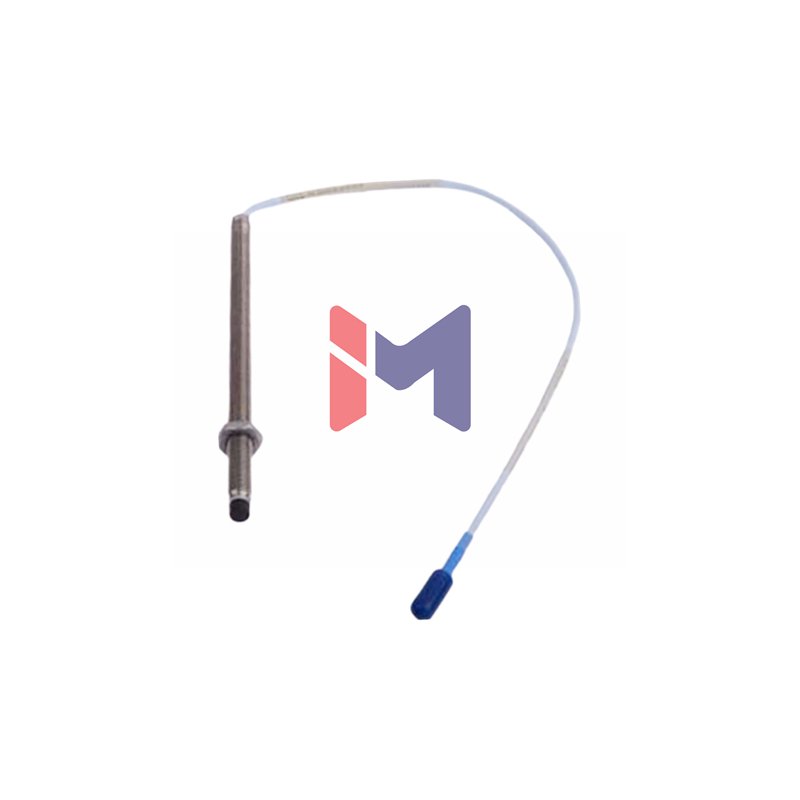

330905-05-08-10-12-00 Bently Nevada 330905 3300 NSv Proximity Probe

Description

Bently Nevada 330905 3300 NSv Proximity Probe Product Overview

The Bently Nevada 330905 3300 NSv Proximity Probe delivers precise shaft position and vibration monitoring. It fully replaces previous 3300 RAM probes and provides superior chemical resistance. This probe works in harsh industrial environments including process compressors.

Key Technical Specifications

• Brand & Model: Bently Nevada 330905 3300 NSv Proximity Probe
• Thread: M10X1, without armor

• Linear Range: 1.5 mm (60 mils), starts at 0.25 mm (10 mils)
• Recommended Gap: 1.0 mm (40 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±12.5%/-20%
• Deviation from Straight Line (DSL): ±0.06 mm (±2.3 mils)
• Frequency Response: 0–10 kHz with up to 305 m (1000 ft) field wiring
• Target Size: Minimum 8.9 mm (0.35 in), recommended 13 mm (0.5 in) diameter

• Probe Tip: Polyphenylene sulfide (PPS)
• Probe Case: AISI 304 stainless steel
• Probe Cable: 75 Ω coaxial, FEP insulated, lengths: 0.5, 1, 5, 7 m
• Cable Resistance: Center 0.220 Ω/m, Shield 0.066 Ω/m
• Cable Capacitance: 69.9 pF/m

• Temperature Range: -52°C to +177°C (-62°F to +351°F)
• Probe Pressure: Seals differential pressure with Viton O-ring
• Minimum Bend Radius: 25.4 mm (1.0 in)
• Torque: Finger tight recommended, max 0.56 N•m (5 in•lb)

Packaging & Shipping

• Includes Bently Nevada 330905 3300 NSv Probe with specified cable
• Factory packaging ensures original condition
• Delivery via FedEx, UPS, DHL

FAQ

• Q: Can the probe operate in chemical process environments?
  • A: Yes, the 3300 NSv offers enhanced chemical resistance.
• Q: Can it replace older 3300 RAM probes?
  • A: Yes, fully compatible and interchangeable.
• Q: What is the recommended installation torque?
  • A: Finger tight, max 0.56 N•m (5 in•lb).

Suffix Information Tree (Collapsible)
