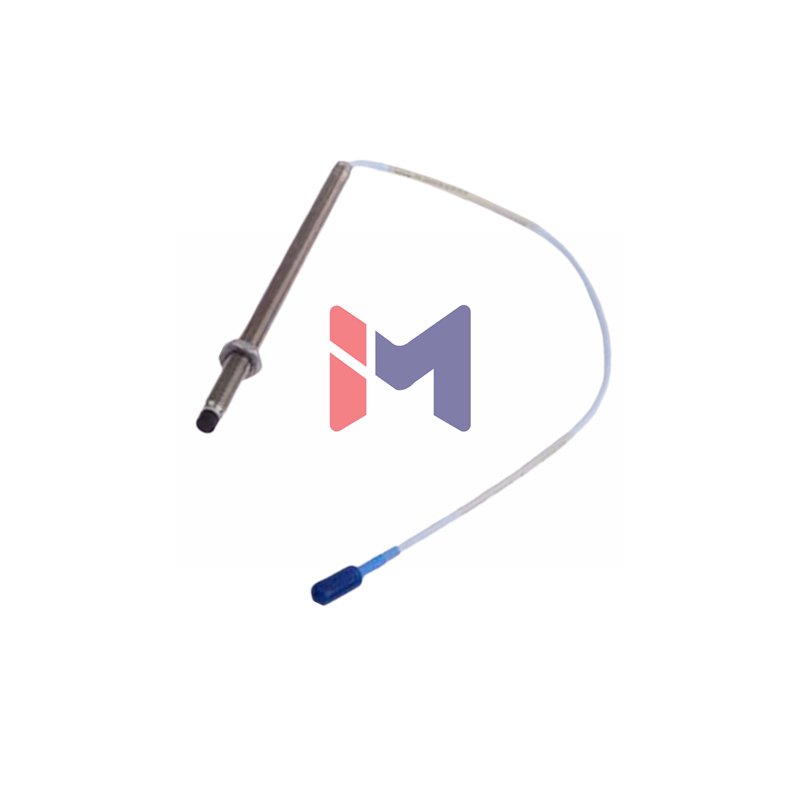

Bently Nevada 330905-05-08-10-02-05: Premium Compact Proximity Solution
Experience precision monitoring with the Bently Nevada 330905-05-08-10-02-05 proximity probe. This compact 80mm sensor combines international certifications with reliable performance in demanding industrial environments. Perfect for space-constrained applications requiring accurate vibration and position measurement.
🛠 Product Configuration Matrix
- Manufacturer: Bently Nevada
- Complete Part Number: 330905-05-08-10-02-05
- Series Platform: 3300 NSv Proximity Probes
- Configuration Architecture:
- 🟦 Platform Code: 330905 (M10X1 thread, unarmored)
- 🟩 Unthreaded Segment: -05- (50 mm exposed length)
- 🟨 Total Housing: -08- (80 mm complete case length)
- 🟥 Wire Length: -10- (1.0 meter connectivity cable)
- 🟪 Interface Type: -02- (ClickLoc + standard cable)
- 🟫 Compliance Level: -05- (Multiple international approvals)
📊 Enhanced Technical Specifications
- Sensitivity Rating: 7.87 V/mm (200 mV/mil) output ratio
- Measurement Capacity: 1.5 mm (60 mils) full linear range
- Calibration Setting: 1.0 mm (40 mils) optimal target gap
- Precision Accuracy: Within ±0.06 mm (±2.3 mils) deviation
- Frequency Capability: 0 to 10 kHz flat response
- Environmental Range: -52°C to +177°C operational limits
- Electrical Characteristic: 4.2 ± 0.5 Ohms DC resistance
- Target Requirement: 13 mm minimum diameter surface
- Cable Specification: 75 Ω coaxial with FEP insulation
- Sealing System: Viton O-ring pressure barrier
- Response Time: < 50 microseconds settling
- Long-Term Stability: < 0.1% annual drift
- Hysteresis: < 0.25% of full scale
- Repeatability: ±0.15% of reading
