Description

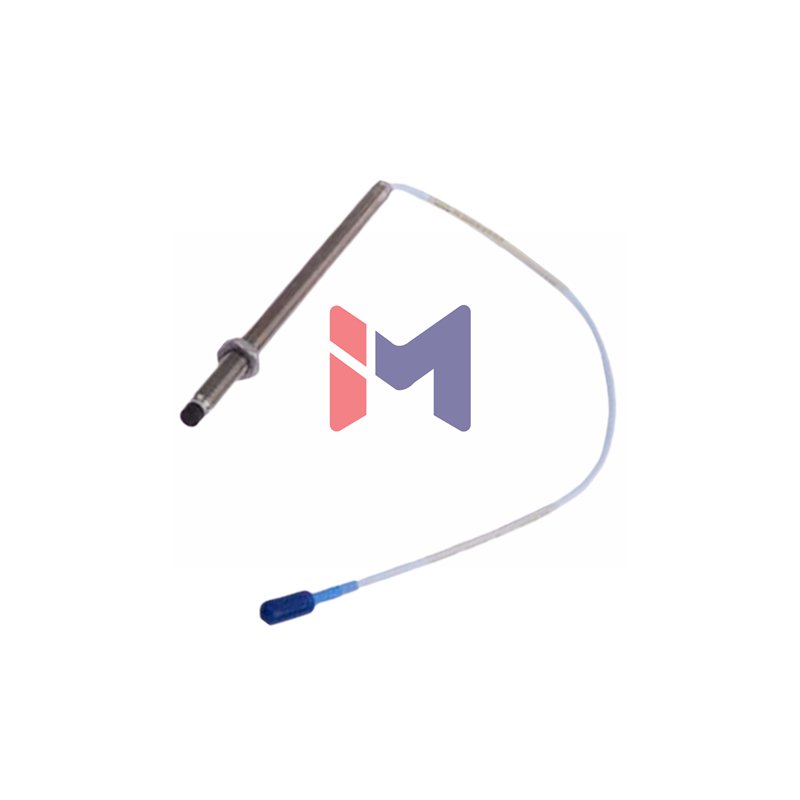

Bently Nevada 3300 NSv Proximity Probe – Premium Vibration & Position Measurement
The Bently Nevada 3300 NSv Proximity Probe delivers high-accuracy performance for critical machinery monitoring. Its enhanced chemical resistance makes it ideal for demanding applications like process compressors. This model is fully interchangeable with the older 3300 RAM probe series, offering an easy upgrade path. You will get superior side-view characteristics for reliable data when installed near the target.
Technical Specifications
- Brand: Bently Nevada
- Model: 330905-05-08-10-01-05
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz
- DC Resistance: 4.2 ± 0.5 Ω (for 1.0 m cable)
- Operating Temperature: -52°C to +177°C
- Minimum Target Size: 8.9 mm diameter
- Case Material: AISI 304 Stainless Steel
- Connector Type: Miniature Coaxial ClickLoc with protector
Complete Suffix Information
- 330905: Base Model Number
- -05: 50 mm Unthreaded Length
- -08: 80 mm Overall Case Length
- -10: 1.0 Meter (39 inches) Cable Length
- -01: Miniature Coaxial ClickLoc Connector
- -05: Multiple Agency Approvals
Packaging & Shipping
- The product is new and original in factory sealing.
- We ship globally via FedEx, UPS, and DHL.
- Package Includes:
- 3300 NSv Probe Unit
- Connector Protector
- Product Documentation
Frequently Asked Questions
- Is the 3300 NSv probe compatible with the 3300 RAM system?
Yes, it is mechanically and electrically compatible with the 3300 RAM probe and cable. - What is the linear range of this probe?
It has a linear range of 1.5 mm (60 mils) from 0.25 mm to 1.75 mm from the target. - What is the temperature limit for operation?
It operates reliably in temperatures from -52°C to +177°C.
