Description

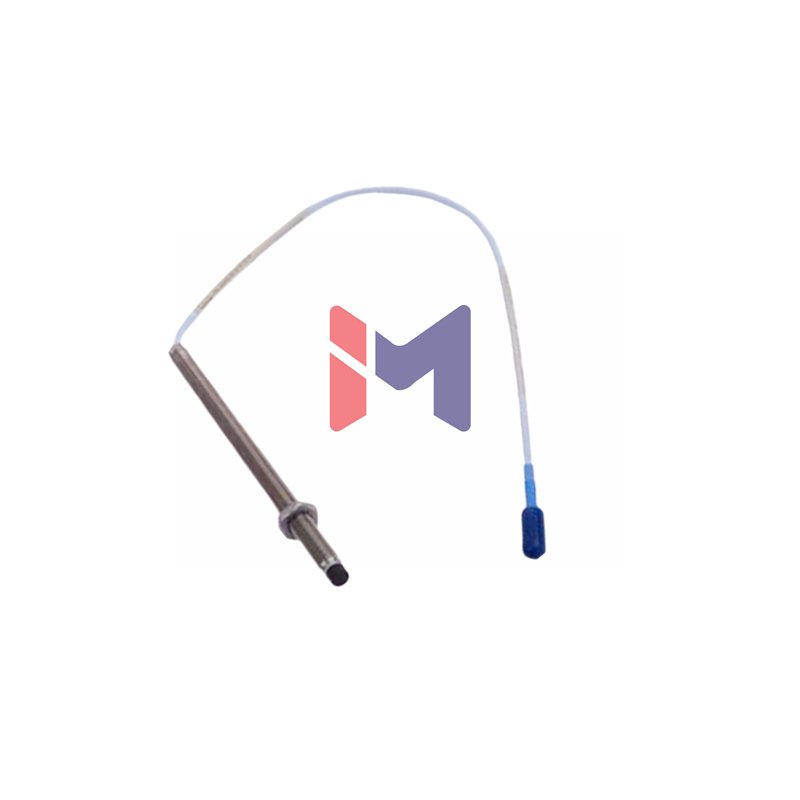

Bently Nevada 3300 NSv Proximity Probe – 330905-05-08-10-01-00
The Bently Nevada 3300 NSv Proximity Probe delivers exceptional performance for industrial vibration and position monitoring applications. This advanced probe operates reliably in harsh environments and provides accurate machinery protection data.
Complete Suffix Information
- 330905 – Base Part Number
- -05 – 50 mm Unthreaded Length
- -08 – 80 mm Overall Case Length
- -10 – 1.0 Meter Cable Length
- -01 – Miniature Coaxial ClickLoc Connector
- -00 – No Agency Approval Required
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Part Number: 330905-05-08-10-01-00
- Thread Type: M10X1
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz
- DC Probe Resistance: 4.2 ± 0.5 Ω
- Operating Temperature: -52°C to +177°C
- Minimum Target Size: 8.9 mm diameter
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
Frequently Asked Questions
- Q: What is the minimum target size for accurate measurements?
A: Minimum 8.9 mm diameter, but 13 mm or larger is recommended - Q: Is this probe compatible with older Bently Nevada systems?
A: Yes, it works perfectly with 3300 RAM proximity systems - Q: What is the linear measurement range?
A: The linear range extends from 0.25 mm to 1.75 mm from target - Q: What connector type does this probe use?
A: Miniature coaxial ClickLoc connector with protector
