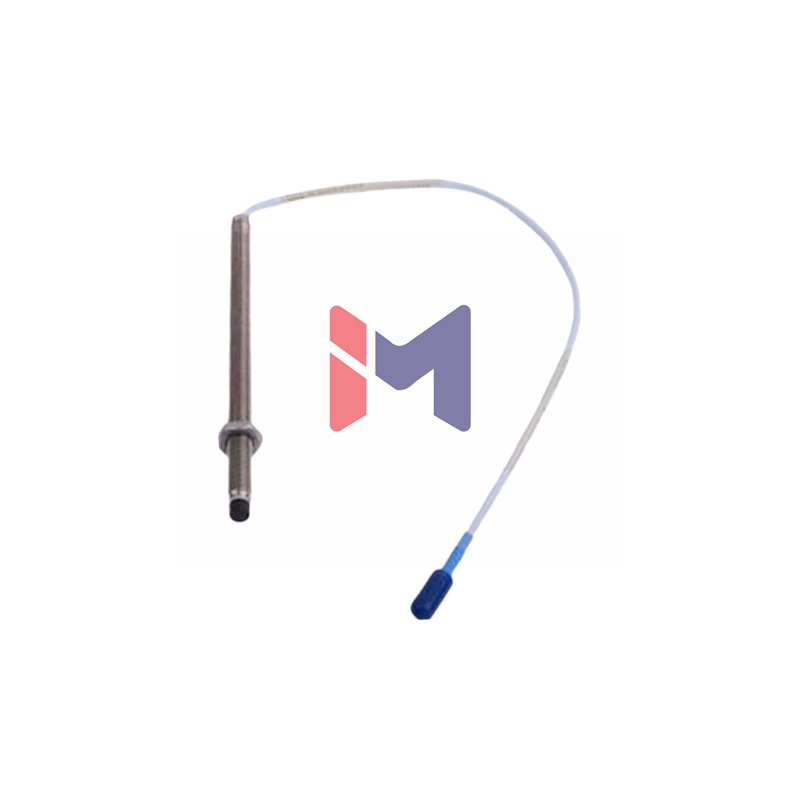

Product Overview: Bently Nevada 3300 NSv Proximity Probe
The Bently Nevada 3300 NSv proximity probe offers advanced performance for industrial vibration and position measurement. This new-generation sensor provides excellent chemical resistance and improved side-view characteristics over earlier models. It works seamlessly with existing 3300 RAM probe systems, making upgrades simple and cost-effective.
Complete Suffix Information
- Part Number: 330905-05-08-05-02-05
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Thread Size: M10x1
- Unthreaded Length: 50 mm (-05)
- Overall Case Length: 80 mm (-08)
- Total Cable Length: 0.5 meter / 20 inches (05)
- Connector Type: Miniature coaxial ClickLoc connector, standard cable (02)
- Agency Approval: Multiple Approvals (-05)
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv
- Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm from the target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Deviation from Straight Line (Linearity): Less than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- DC Probe Resistance: 4.0 ± 0.5 ohms for 0.5m cable
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance
- Probe Case Material: AISI 304 Stainless Steel
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
FAQ
- Is the 3300 NSv compatible with my existing 3300 RAM system?
Yes, the 3300 NSv probe is fully compatible and interchangeable with the previous 3300 RAM probe and cable. - What is the advantage of the NSv probe?
It offers increased chemical resistance and better side-view performance for more accurate measurements. - What is the total length of the probe and cable?
The total probe length including the cable is 0.5 meters (20 inches).
Note: For applications involving high pressure, please consult the manufacturer, as probes are not pressure tested before shipment.
