Description
Product Overview

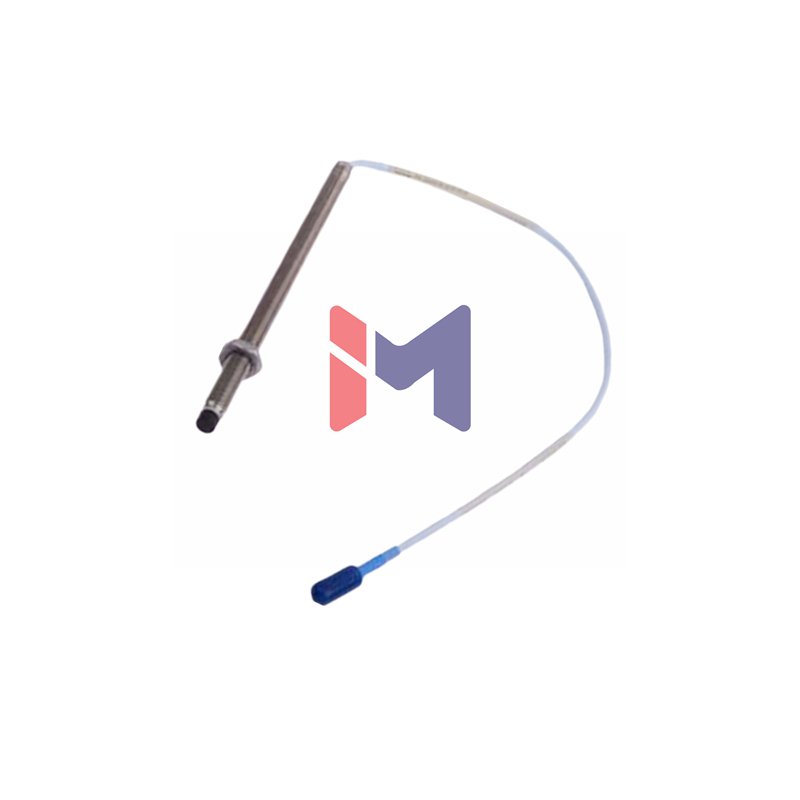

The Bently Nevada 3300 NSv Proximity Probe delivers highly reliable vibration and position measurement for industrial machinery. This new generation probe features improved chemical resistance and superior side-view characteristics.
Complete Model Suffix: 330905-00-23-10-02-05
- Brand: Bently Nevada
- Series: 3300 NSv
- Basic P/N: 330905
- -00- Unthreaded Length: 00 mm
- -23- Overall Case Length: 230 mm
- -10- Total Cable Length: 1.0 meter
- -02- Connector: Miniature coaxial ClickLoc
- -05- Agency Approval: Multiple Approvals
Detailed Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv
- Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm from the target.
- Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance.
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil) with a tolerance of +12.5%/-20%.
- Linearity (Deviation from Straight Line): Less than ±0.06 mm (±2.3 mils).
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical) with up to 305m of field wiring.
- DC Probe Resistance: 4.2 ± 0.5 ohms for a 1.0-meter cable.
- Operating Temperature: -52°C to +177°C (-62°F to +351°F).
- Minimum Target Size: 8.9 mm diameter; 13 mm is recommended.
- Probe Tip Material: Chemical-resistant Polyphenylene Sulfide (PPS).
- Probe Case Material: AISI 304 Stainless Steel.
- Case Thread: M10x1.
- Maximum Torque: 0.56 N•m (5 in•lb).
- Cable Minimum Bend Radius: 25.4 mm (1.0 in).
FAQ
- Is the 3300 NSv probe compatible with older systems?
Yes, the 3300 NSv probe is fully interchangeable with the previous 3300 RAM probe and cable. - What is the main advantage of the NSv design?
It offers increased chemical resistance for use in challenging environments like process compressors. - What is the typical output voltage at the recommended gap?
At the 1.0 mm (40 mils) gap, the output is approximately -8 Vdc.
