Description

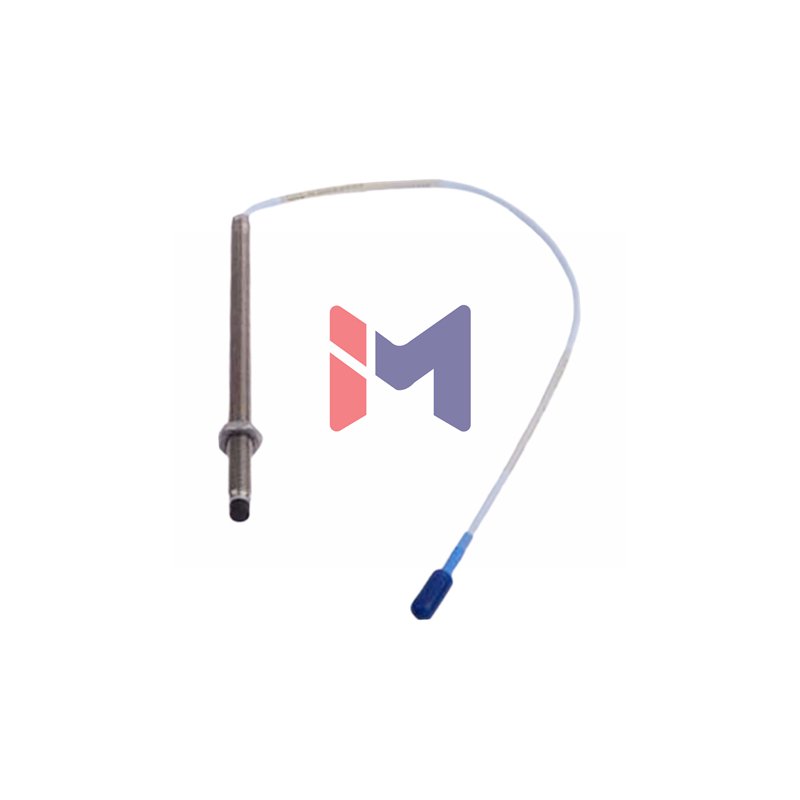

Bently Nevada 330905-00-20-10-02-05 Proximity Probe
The Bently Nevada 3300 NSv Proximity Probe represents the pinnacle of vibration monitoring technology for industrial applications. This advanced sensor delivers superior performance in harsh environments with enhanced chemical resistance and improved side-view characteristics.
Product Identification & Configuration
- Manufacturer: Bently Nevada
- Base Model: 330905 (3300 NSv Probe, M10X1 thread, without armor)
- Configuration Tree:
- Platform: 3300 NSv Series
- Thread Type: M10X1 Metric
- Unthreaded Length: 00 (0 mm)
- Case Length: 20 (200 mm)
- Cable Length: 10 (1.0 meter/39 inches)
- Connector Type: 02 (Miniature coaxial ClickLoc)
- Certification: 05 (Multiple Agency Approvals)
Technical Specifications
- Electrical Characteristics:
- DC Resistance: 4.2 ± 0.5 Ω (1.0 meter cable)
- Cable Capacitance: 69.9 pF/m typical
- Impedance: 75 Ω coaxial design
- Performance Metrics:
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: ±0.06 mm deviation from best fit straight line
- Frequency Response: 0-10 kHz (±3 dB)
- Environmental Ratings:
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Chemical Resistance: Enhanced PPS tip material
- Sealing: Viton O-ring for differential pressure
- Mechanical Properties:
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Maximum Torque: 0.56 N•m (5 in•lb)
- Thread Engagement: 15 mm maximum
Comparison With Similar Products
- 330905-00-08-05-01-00 – Shorter 0.5m cable, different approvals
- 330905-00-25-10-02-05 – Longer 250mm case, otherwise similar
