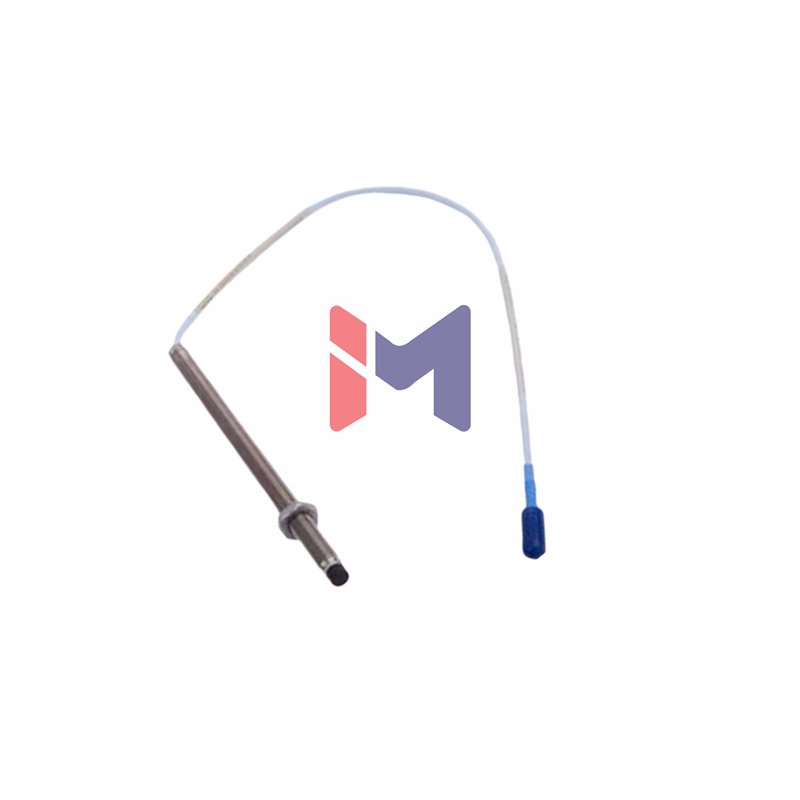

Bently Nevada 3300 NSv Proximity Probe – 330905-00-13-10-02-CN
The Bently Nevada 3300 NSv Proximity Probe delivers high-performance vibration and position measurement. Its advanced design offers superior chemical resistance and side-view characteristics. This makes it perfect for demanding applications like process compressors. The 330905-00-13-10-02-CN model comes with a Miniature ClickLoc connector and a standard cable.
Detailed Technical Specifications
- Brand: Bently Nevada
- Model Series: 3300 NSv
- Complete Part Number: 330905-00-13-10-02-CN
- Part Number Suffix Breakdown:
- -00-: 00 mm Unthreaded Length
- -13-: 130 mm Overall Case Length
- -10-: 1.0 meter (39 in) Total Cable Length
- -02-: Miniature Coaxial ClickLoc Connector
- -CN: Country Specific Agency Approval
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Linearity (Deviation from Straight Line): < ±0.06 mm (±2.3 mils)
- Probe Resistance (1.0m): 4.2 ± 0.5 ohms
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Chemical-Resistant Polyphenylene Sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Minimum Target Size: 13 mm (0.5 in) diameter recommended
Installation & Mechanical Data
- Thread Size: M10x1
- Maximum Thread Engagement: 15 mm
- Recommended Installation Torque: Finger tight + 1/4 turn (Max 0.56 N•m)
- Connector Torque: 7.5 N•m (66 in•lb) recommended
- Minimum Cable Bend Radius: 25.4 mm (1.0 in)
Wiring & System Integration
- Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Field Wiring Recommendation: Use three-conductor shielded triad cable
- Maximum Field Wiring Length: 305 meters (1,000 feet) to the 3300 XL NSv Proximitor Sensor
Packaging & Shipping
- Condition: New & Original
- Package Contents: One 3300 NSv Probe
- Shipping Methods: Worldwide via FedEx, UPS, and DHL
