Description

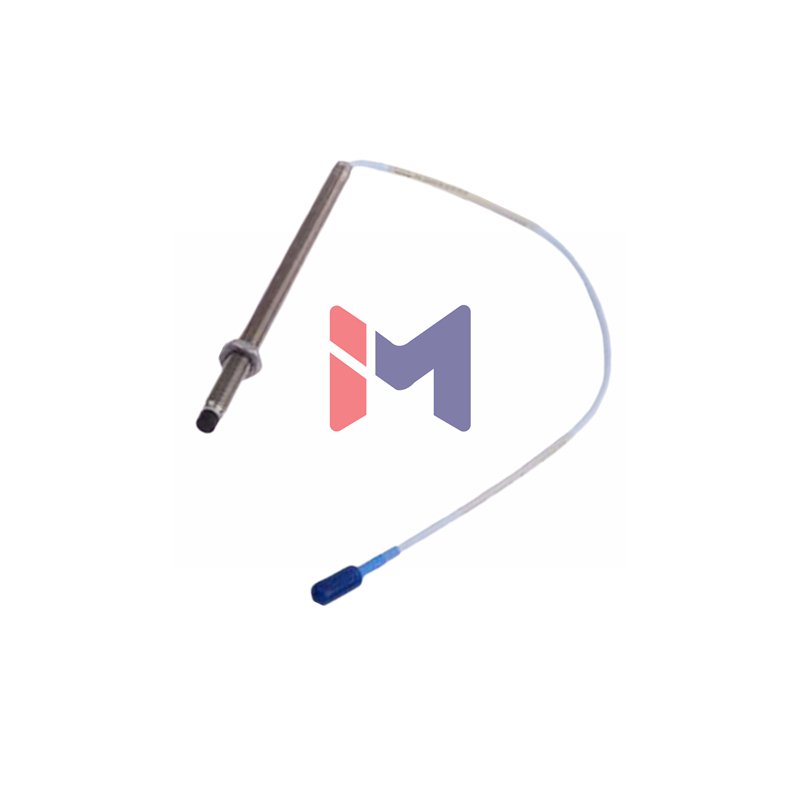

Bently Nevada 330905-00-12-05-02-RU 3300 NSv Proximity Probe
The Bently Nevada 330905-00-12-05-02-RU represents the latest advancement in proximity sensing technology. This high-performance probe offers superior chemical resistance and measurement accuracy. It maintains full compatibility with previous 3300 RAM probe systems. The 3300 NSv probe delivers reliable operation in demanding process compressor applications. Bently Nevada designed this probe for precise machinery monitoring and protection.
Complete Model Specification
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330905-00-12-05-02-RU
- Base Model: 330905 (3300 NSv Probe, M10X1 thread, without armor)
- Unthreaded Length: 00 (0 mm)
- Overall Case Length: 12 (120 mm)
- Total Length: 05 (0.5 meter/20 inches)
- Connector Type: 02 (Miniature coaxial ClickLoc connector, standard cable)
- Agency Approval: RU (Country Specific Approval)
Technical Specifications
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Frequency Response: 0 to 10 kHz: +0, -3 dB typical
- Deviation from Straight Line: Less than ±0.06 mm (±2.3 mils)
- Probe DC Resistance: 4.0 ± 0.5 ohms (0.5 meter length)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
- Maximum Field Wiring: 305 meters (1000 feet)
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 304 stainless steel
- Cable Type: 75 Ω coaxial, FEP insulated
Frequently Asked Questions
- Is this probe compatible with existing 3300 systems?
Yes, it’s fully interchangeable with 3300 RAM probes and cables. - What makes this probe better for process applications?
It features increased chemical resistance compared to previous models. - What is the maximum cable length supported?
Up to 305 meters (1000 feet) of field wiring can be used. - What temperature range can this probe withstand?
It operates from -52°C to +177°C (-62°F to +351°F). - What type of connector does this probe use?
It uses a miniature coaxial ClickLoc connector for secure connections.
