Description

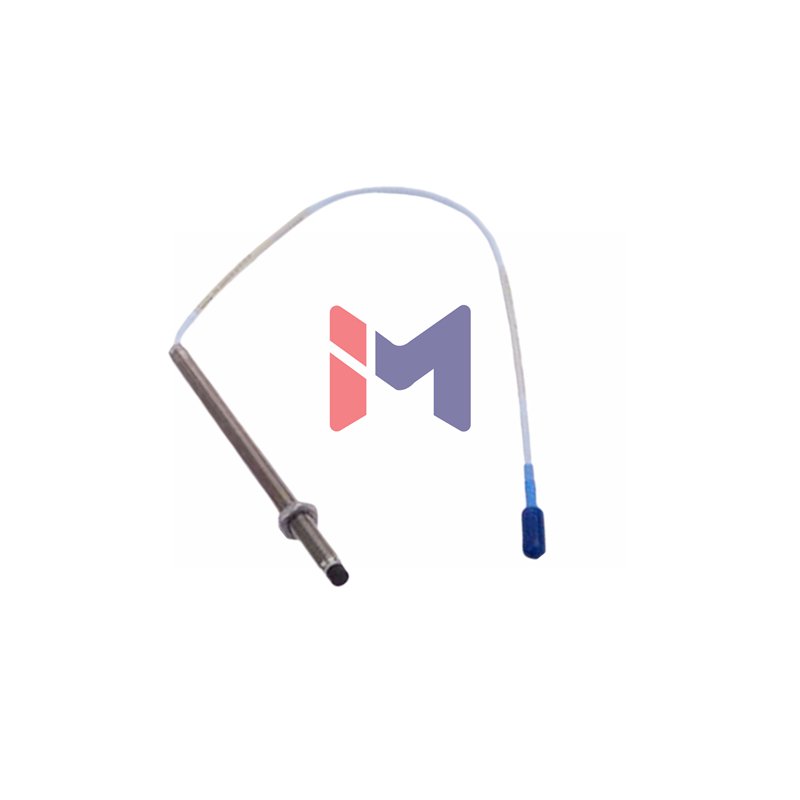

Bently Nevada 3300 NSv Proximity Probe – High-Performance Vibration Monitoring Solution
The Bently Nevada 330905-00-10-05-12-00 is a new-generation industrial proximity probe designed for accurate and reliable vibration and position measurement. It offers superior chemical resistance and mechanical compatibility with previous 3300 RAM probes. Ideal for harsh environments including process compressors, this sensor ensures long-term performance and easy integration.
Full Suffix Information
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Part Number: 330905-00-10-05-12-00
- Thread Size: M10×1
- Unthreaded Length: 00 mm
- Case Length: 100 mm
- Cable Length: 0.5 m (20″)
- Connector: Miniature Coaxial ClickLoc
- Cable Type: FluidLoc
- Agency Approval: Not Required (-00)
Technical Specifications
- Linear Range: 1.5 mm (60 mils), from 0.25 mm to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils)
- Incremental Scale Factor: 7.87 V/mm (200 mV/mil)
- Deviation from Straight Line: < ±0.06 mm (±2.3 mils)
- Frequency Response: 0–10 kHz (±3 dB with 305 m field wiring)
- DC Resistance: 4.0 ± 0.5 Ω (0.5 m cable)
- Operating Temperature: -52°C to +177°C
- Minimum Target Size: 8.9 mm (0.35″), 13 mm recommended
- Cable Type: 75 Ω coaxial with FEP insulation
- Max Field Wiring: 305 m (1000 ft), 3-conductor shielded triad
FAQ
- Is the 3300 NSv probe compatible with older Bently Nevada systems?
Yes, it is fully compatible with 3300 RAM probes and extension cables. - What is the advantage of the NSv over the 3300 RAM probe?
It offers better chemical resistance and improved side-view performance. - What cable length is available?
The probe comes in 0.5m, 1m, 5m, or 7m total lengths.
