Description

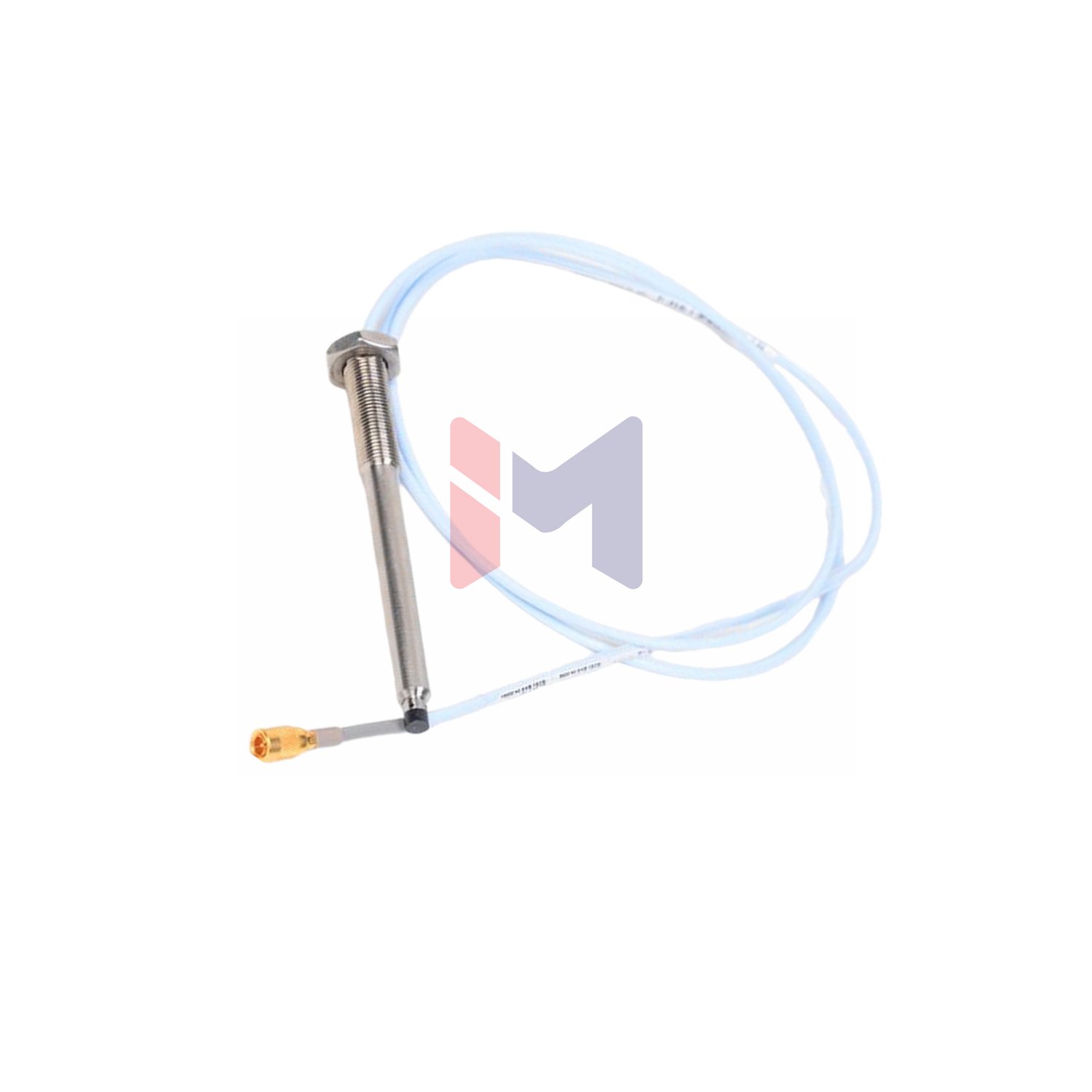

Bently Nevada 3300 NSv Proximity Probe: High-Performance Vibration Monitoring
New original 330905-00-08-10-02-CN proximity probe with factory warranty. Designed for critical machinery protection in harsh industrial environments.
Technical Specifications
- Model Suffix Breakdown:
- 330905: Base model
- -00-: 0mm unthreaded length
- -08-: 80mm case length
- -10-: 1.0m cable (39″)
- -02-: Miniature coaxial ClickLoc connector
- -CN: Country-specific approvals
- Measurement Range: 1.5mm (60 mils)
- Sensitivity: 7.87 V/mm ±20%
- Linearity: <±0.06mm deviation
- Frequency Response: 0-10 kHz (±3dB)
- Temp Range: -52°C to +177°C
- Ingress Protection: Viton O-ring seal
- Cable: 75Ω FEP coaxial
Installation & Compatibility
- Mounting: M10x1 thread (finger tight + 11.3 N•m max)
- Min Target Size: Ø13mm (Ø0.5″)
- Recommended Gap: 1.0mm (40 mils)
- Direct replacement for 3300 RAM probes
- Superior side-view performance vs 3000-series probes
Shipping & Support
- Global Delivery: FedEx/UPS/DHL
- Package Includes: Probe, documentation, warranty card
- Typical Applications:
- Process compressor monitoring
- Turbine vibration diagnostics
- Axial position measurement
Download Documentation
Get full installation and specs:
FAQ
- Pressure rating? Not tested – contact for custom validation
- Cable length options? 0.5m / 1m / 5m / 7m
- Field wiring max length? 305m (1000 ft)
