Description

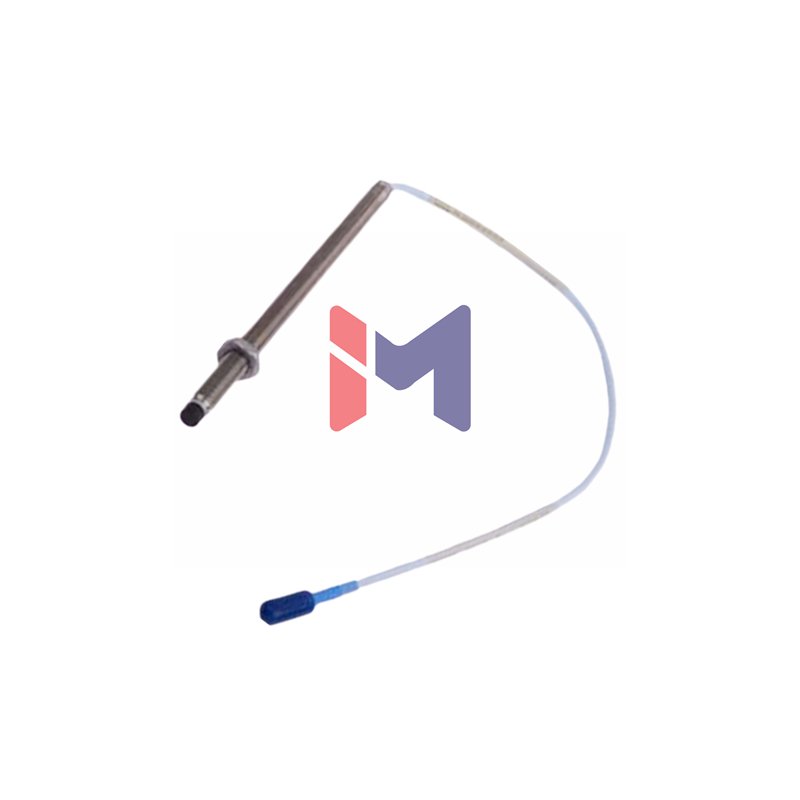

Bently Nevada 3300 NSv Proximity Probe – High-Performance Vibration Sensing Solution
The Bently Nevada 3300 NSv Proximity Probe delivers advanced performance for critical vibration monitoring. It features superior chemical resistance and excellent side-view characteristics. This makes it ideal for demanding applications like process compressors. The probe is fully compatible with earlier 3300 RAM systems.
Complete Product Suffix Information
- Full Part Number: 330905-00-06-10-02-00
- Base Model: 330905 (3300 NSv Probe, M10x1 thread, without armor)
- Unthreaded Length: 00 (0 mm)
- Overall Case Length: 06 (60 mm)
- Total Cable Length: 10 (1.0 meter / 39 inches)
- Connector & Cable Type: 02 (Miniature coaxial ClickLoc connector, standard cable)
- Agency Approval: 00 (Not required)
Detailed Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv
- Linear Measurement Range: 1.5 mm (60 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Non-Linearity (Deviation from Straight Line): < ±0.06 mm (±2.3 mils)
- Probe DC Resistance: 4.2 ± 0.5 Ω (for 1.0 m length)
- Operating Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm (0.35 in) diameter
- Maximum Field Wiring Length: 305 meters (1,000 feet)
Frequently Asked Questions (FAQ)
- Is this probe a direct replacement for a 3300 RAM model?
Yes, the 3300 NSv is mechanically and electrically interchangeable with the older 3300 RAM probe. - What is the maximum distance between the sensor and monitor?
You can use up to 305 meters (1000 feet) of field wiring between the probe and the monitoring system. - What type of connector does this probe use?
It is equipped with a Miniature Coaxial ClickLoc connector for a secure and simple connection.
