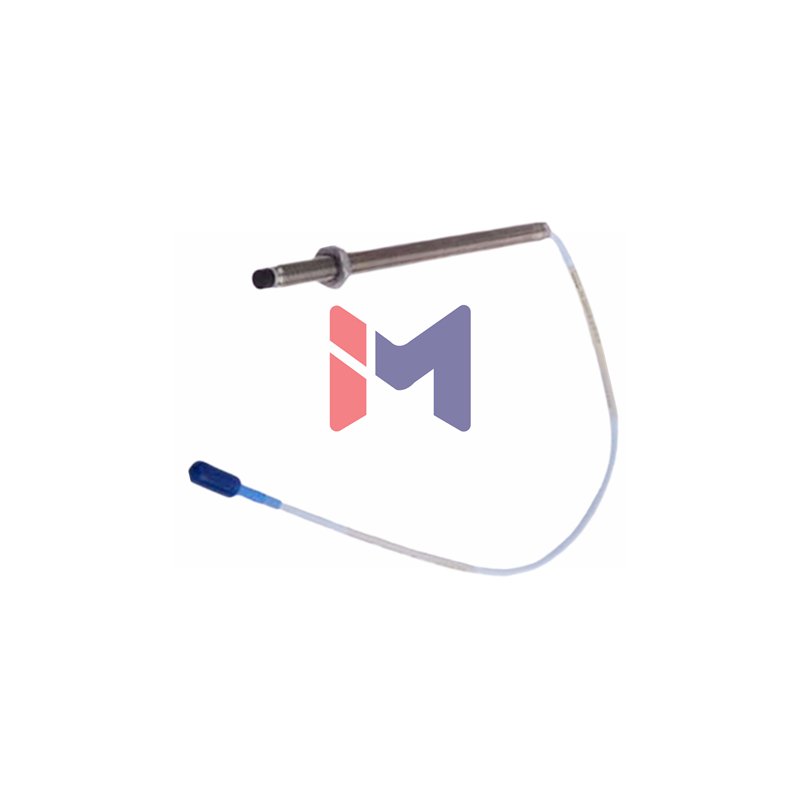

Bently Nevada 3300 NSv Proximity Probe – 330905-00-03-10-02-05
Discover exceptional precision in vibration monitoring with the Bently Nevada 3300 NSv Proximity Probe. This advanced sensor delivers reliable performance for critical machinery protection applications. The 330905-00-03-10-02-05 model features a compact 30mm case with global agency approvals, making it ideal for demanding industrial environments where space and certification matter.
Complete Model Number Breakdown
- Base Model: 330905 (3300 NSv Probe, M10x1)
- Suffix Structure:
- -00- → Unthreaded Length: 00 mm
- -03- → Case Length: 30 mm
- -10- → Cable Length: 1.0 meter
- -02- → Connector: Miniature ClickLoc
- -05 → Approval: Multiple Agencies (ATEX/IECEx)
Technical Specifications
- Measurement Range: 1.5 mm (60 mils) linear range
- Recommended Gap: 1.0 mm (40 mils) from target
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (+0/-3 dB)
- Linearity: ±0.06 mm (±2.3 mils) deviation
- Temperature Range: -52°C to +177°C operating
- Probe Resistance: 4.2 ± 0.5 ohms (1m cable)
- Case Material: AISI 304 stainless steel
- Tip Material: Chemical-resistant PPS
Installation Guidelines
- Thread Size: M10 x 1.0 metric
- Max Engagement: 15 mm thread engagement
- Installation Torque: Finger tight + ¼ turn (max 0.56 N•m)
- Connector Torque: 7.5 N•m (66 in-lb) recommended
- Bend Radius: 25.4 mm minimum bend radius
Cable & Wiring Information
- Cable Type: 75Ω coaxial with FEP insulation
- Capacitance: 69.9 pF/m typical
- Field Wiring: Shielded triad cable recommended
- Wire Size: 0.25-0.75 mm² (18-23 AWG) with ferrules
- Max Distance: 305m to 3300 XL NSv Proximitor
Shipping & Packaging
- Condition: New & original in factory packaging
- Contents: 1 × 3300 NSv Probe unit
- Shipping: FedEx, UPS, DHL worldwide
- Warranty: 12 months warranty
Related Product Comparisons
- 330905-00-25-05-12-05 – Longer 130mm case with 5m cable
- 330905-00-08-10-01-05 – Different connector configuration
