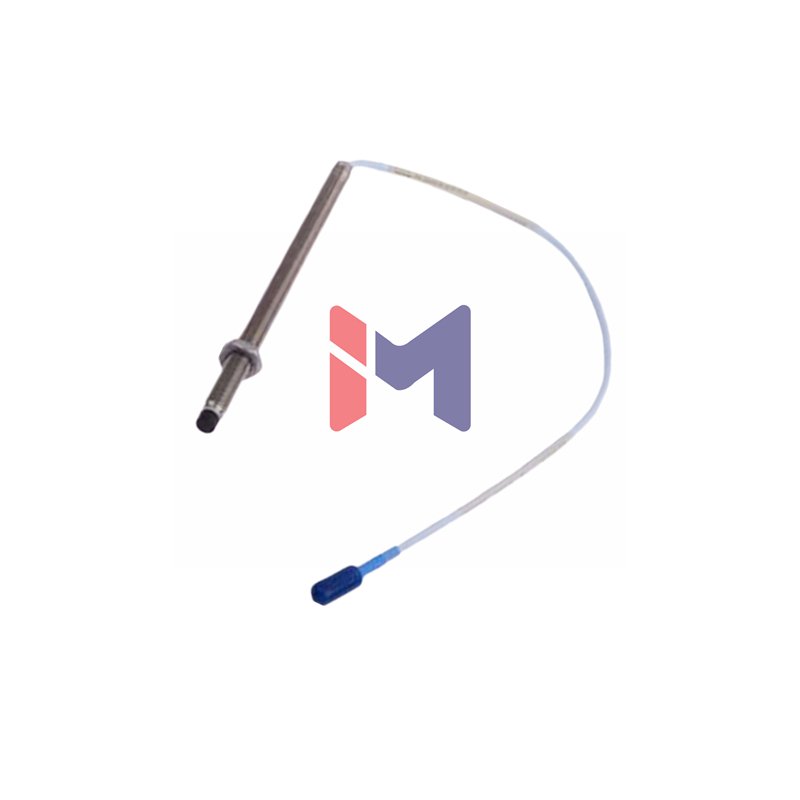

Bently Nevada 3300 NSv Proximity Probe: Certified Industrial Vibration Sensor
The Bently Nevada 3300 NSv Proximity Probe sets a new standard for reliable vibration monitoring in harsh industrial environments. This specific configuration (330905-00-03-10-01-05) features global agency approvals and enhanced connector protection. It maintains full compatibility with existing 3300 RAM systems while offering superior performance.
Product Identification & Suffix Decoder
- Complete Part Number: 330905-00-03-10-01-05
- Series: 3300 NSv
- Base Model: 330905 (M10x1 Thread, No Armor)
- ► Unthreaded Length: 00 (0 mm)
- ► Case Length: 03 (30 mm)
- ► Cable Length: 10 (1.0 Meter)
- ► Connector: 01 (ClickLoc with Protector)
- ► Approvals: 05 (Multiple Agency Certifications)
Core Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv
- Measurement Range: 1.5 mm (60 mils)
- Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil)
- Linearity: < ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (+0/-3 dB)
- Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Probe Resistance: 4.2 Ω ± 0.5 (1.0 meter cable)
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
Comparison With Similar Models
- Compared to 330905-00-18-05-02-00: This model features a shorter 30mm case length versus 80mm
- Compared to 330905-00-16-05-02-05: Both have multiple approvals, but our model includes connector protection
- Our configuration (01-05) offers the unique combination of connector protector and global certifications
