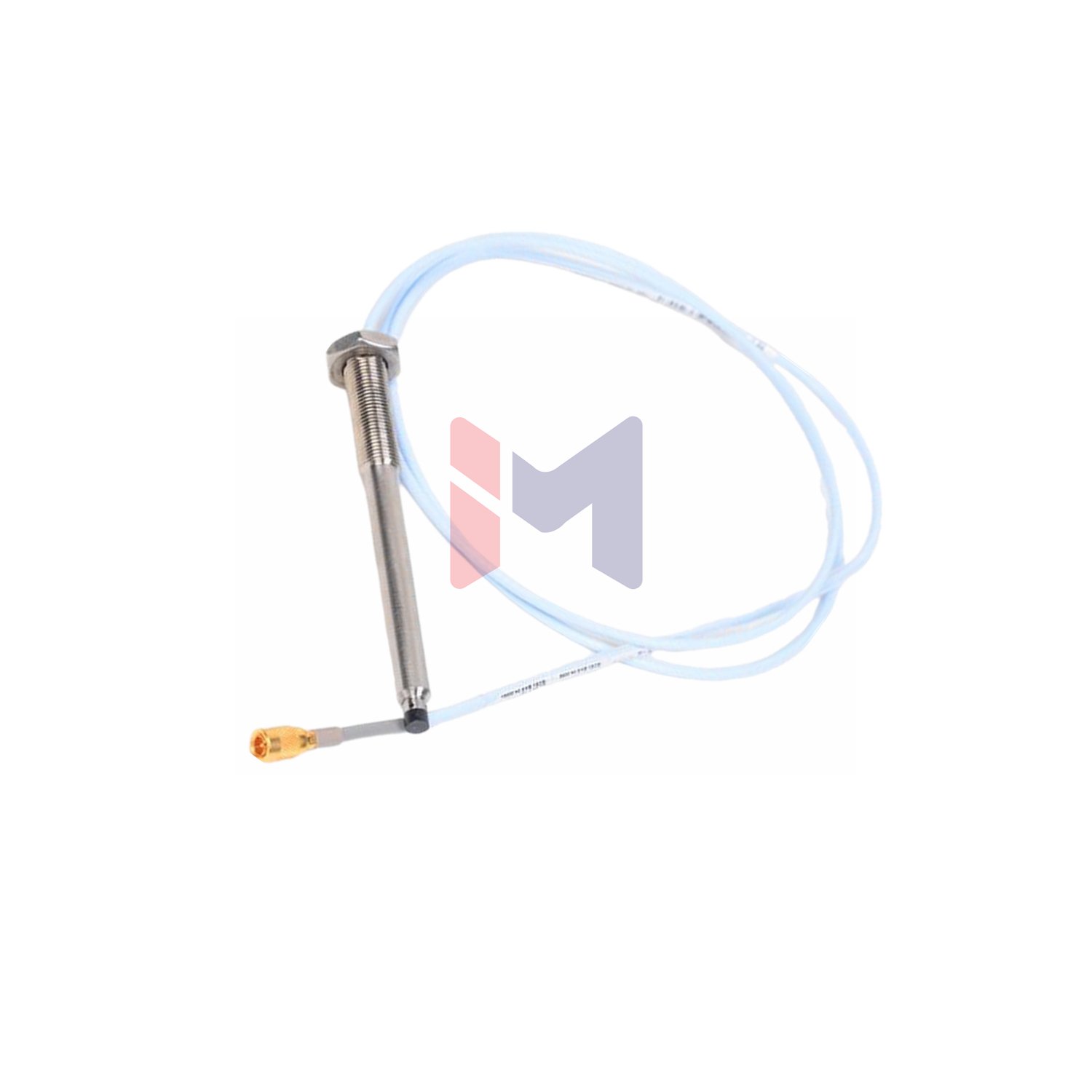

Bently Nevada 330903 NSv Proximity Probe – Advanced Chemical Resistant Design
Discover the Bently Nevada 330903-00-10-05-02-CN NSv proximity probe with 100mm length, 0.5m cable, and enhanced chemical resistance. Engineered for demanding process compressor applications.
Technical Specifications
- Electrical Properties
- Probe DC Resistance: 4.0 Ω ± 0.5 Ω (0.5m length)
- Extension Cable Resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
- Extension Cable Capacitance: 69.9 pF/m typical
- Incremental Scale Factor: 7.87 V/mm (200 mV/mil) +12.5%/-20%
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Mechanical Dimensions
- Thread Specification: M8 × 1
- Unthreaded Length: 0 mm
- Overall Case Length: 100 mm
- Cable Length: 0.5 meter (20 inches)
- Connector Type: Miniature Coaxial ClickLoc
- Maximum Thread Engagement: 12 mm
- Performance Metrics
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Deviation from Straight Line: < ±0.06 mm (±2.3 mils)
- Minimum Target Size: 8.9 mm (0.35 in) diameter
- Recommended Target Size: 13 mm (0.5 in) diameter
- Material Construction
- Probe Tip: Polyphenylene Sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Sealing System: Viton® O-ring
- Cable Insulation: Fluoroethylene Propylene (FEP)
- Installation Specifications
- Recommended Torque: Finger tight
- Maximum Torque: 0.56 N•m (5 in•lb)
- Connector-to-Connector Torque: 5.1 N•m (45 in•lb) recommended
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
- Maximum Field Wiring Length: 305 meters (1,000 feet)
- Environmental Specifications
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Differential Pressure: Sealed with Viton® O-ring
- Chemical Resistance: Enhanced compared to 3300 RAM probes
Package Contents
- 3300 NSv Proximity Probe (100mm length)
- 0.5 Meter FEP-Insulated Cable
- Miniature Coaxial ClickLoc Connector
- Comprehensive Installation Guide
- Calibration Documentation
- Country-Specific Compliance Certificates
Shipping & Warranty Information
- Global Shipping Options: FedEx, UPS, DHL (express services available)
- Standard Delivery: 5-10 business days for international destinations
- Warranty Coverage: 12 months comprehensive manufacturer warranty
- Certification Compliance: Includes all necessary country-specific documentation
