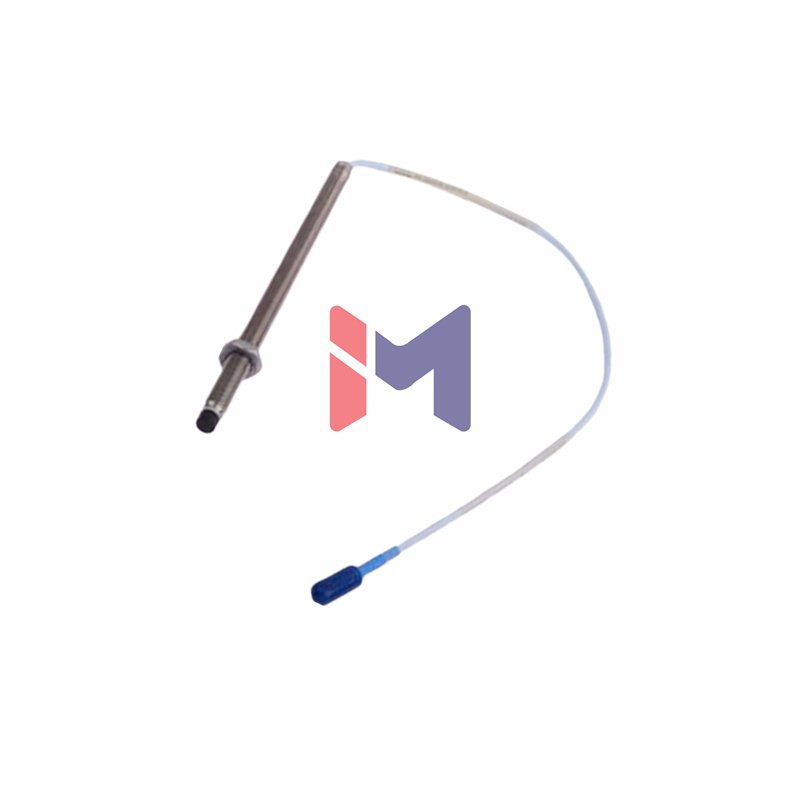

Bently Nevada 330903-00-05-50-11-05: Industrial Proximity Measurement Solution
The Bently Nevada 330903-00-05-50-11-05 represents premium sensing technology. This 3300 NSv probe delivers exceptional performance in harsh environments. It features specialized FluidLoc cable and multiple agency approvals. The probe ensures reliable machinery protection for critical applications.
Product Configuration Breakdown
- Base Model: 330903 (3300 NSv Probe, M8X1 thread)
- Unthreaded Section: 00 → 0 mm length
- Case Dimensions: 05 → 50 mm overall length
- Cable Specification: 50 → 5.0 meter FluidLoc cable
- Connection System: 11 → ClickLoc with protector
- Certification Package: 05 → Multiple agency approvals
Advanced Technical Capabilities
- Measurement Performance: 1.5 mm linear range with excellent accuracy
- Electrical Characteristics: 7.87 V/mm output with minimal deviation
- Frequency Response: 0-10 kHz range for dynamic measurements
- Environmental Rating: -52°C to +177°C operating temperature range
- Cable Technology: FluidLoc design for superior moisture resistance
- Probe Resistance: 5.3 ± 0.7 ohms at standard 5-meter length
- Target Requirements: 8.9 mm minimum, 13 mm recommended diameter
- Mechanical Design: 304 stainless steel with PPS tip material
- Installation Specifications: Finger tight torque, 12mm thread engagement
- Field Wiring: Supports up to 305 meters with triad cable
Technical Support Questions
- What advantages does FluidLoc cable provide?
FluidLoc technology prevents fluid penetration along the cable length. - Which agency approvals does this model include?
The probe carries multiple international certifications for global use. - How does the longer case length affect installation?
The 50mm case provides better stability in deeper mounting holes. - Can this probe handle high-pressure environments?
The Viton O-ring seal protects against significant pressure differentials. - What maintenance does the connector protector require?
The protector needs periodic inspection for damage or contamination.
