Description

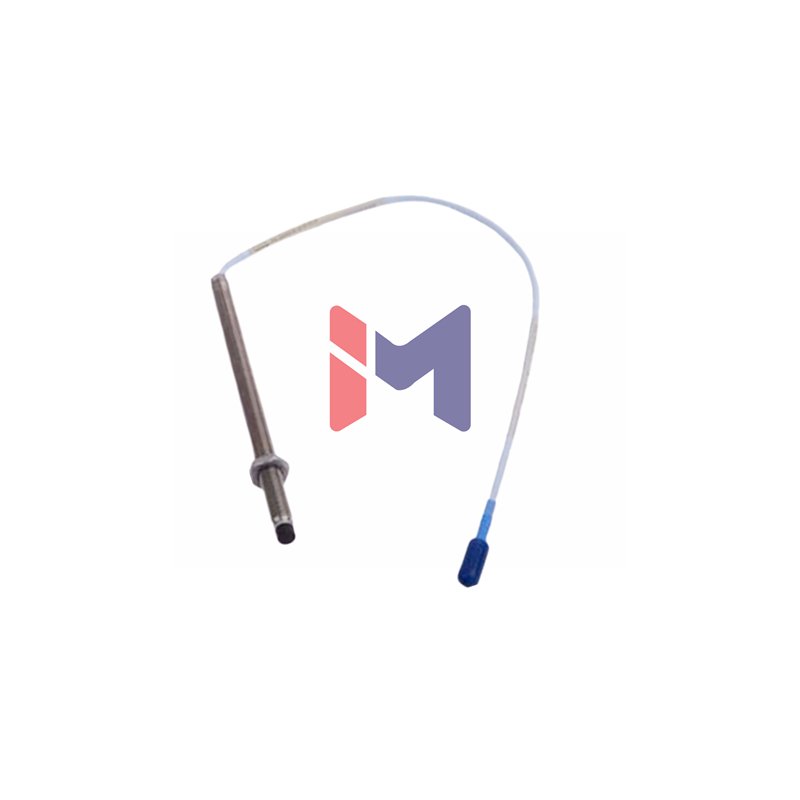

Bently Nevada 3300 NSv Proximity Probe – 5 Meter Industrial Sensor
Product Identification & Specifications
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Complete Part Number: 330903-00-05-50-01-00
- Product Condition: New & Original Factory Packaging
- Shipping Methods: FedEx, UPS, DHL Express Available
Detailed Configuration Breakdown
- Base Model: 330903 (3300 NSv Probe, M8X1 Thread)
- Unthreaded Length: -00- (00 mm Unthreaded Section)
- Case Dimensions: -05- (50 mm Overall Case Length)
- Cable Length: -50- (5.0 Meters/16.4 Feet Total Length)
- Connector Type: -01- (Miniature Coaxial ClickLoc Connector)
- Certification: -00- (No Agency Approvals Required)
Performance Characteristics
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
- Frequency Response: 0 to 10 kHz (+0/-3 dB) with 305m wiring
- Sensitivity Rating: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity Accuracy: ±0.06 mm (±2.3 mils) deviation from ideal
- Probe Resistance: 5.3 ± 0.7 ohms at 5.0 meter length
- Temperature Tolerance: -52°C to +177°C operational range
- Target Requirements: Minimum 8.9 mm, recommended 13 mm
- Cable Impedance: 75 Ω coaxial with FEP insulation
Technical Support Questions
- Q: What is the maximum pressure rating for this probe?
A: The probe seals differential pressure with Viton O-ring but requires custom testing for specific pressure applications - Q: Can this probe be used in hazardous environments?
A: The standard model has no agency approvals; special versions are available for hazardous areas - Q: What maintenance does this proximity probe require?
A: The probe requires minimal maintenance beyond periodic calibration verification - Q: How does temperature affect probe performance?
A: The probe maintains stability across its entire -52°C to +177°C operating range - Q: What connectors are compatible with this system?
A: It uses miniature coaxial ClickLoc connectors with standard compatibility
