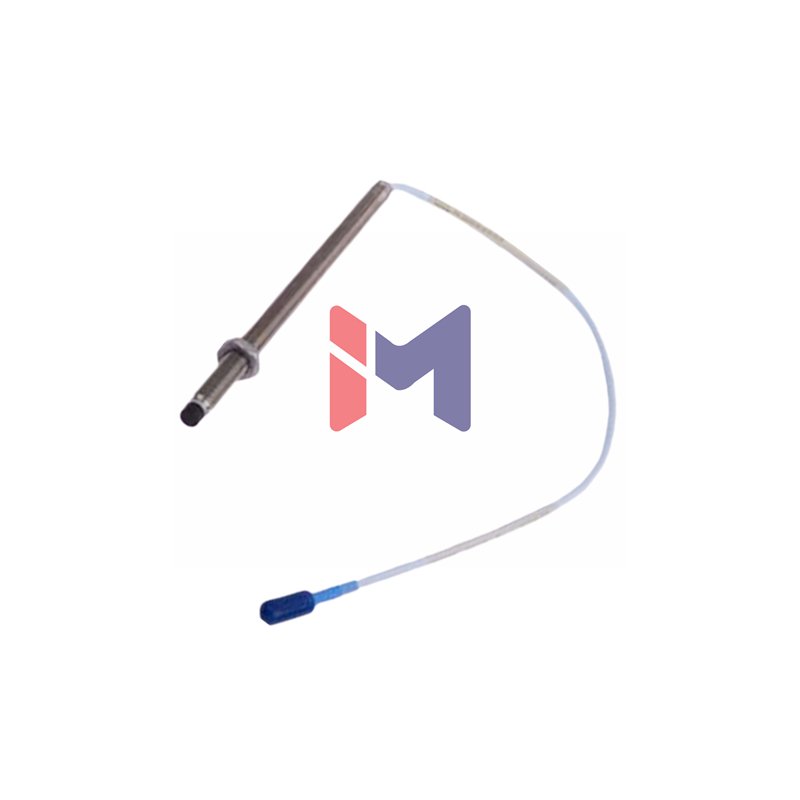

Bently Nevada 330903 NSv Compact Proximity Probe
Meet the Bently Nevada 330903-00-05-10-02-00 NSv proximity probe. This compact sensor features a 50mm case and 1.0m cable. It offers excellent performance for industrial monitoring applications.
Product Introduction
The Bently Nevada 330903-00-05-10-02-00 provides reliable vibration measurement. This NSv series probe ensures accurate data collection. It works in various industrial environments with consistent results.
Technical Details
- Electrical Specifications
- Probe DC Resistance: 4.2 Ω ± 0.5 Ω at 1.0m length
- Cable Resistance: 0.220 Ω/m center conductor
- Shield Resistance: 0.066 Ω/m for noise protection
- Cable Capacitance: 69.9 pF/m typical value
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Physical Dimensions
- Thread Size: M8 × 1 metric thread
- Case Length: 50 mm compact design
- Cable Length: 1.0 meter (39 inches)
- Connector: Miniature Coaxial ClickLoc
- Thread Engagement: 12 mm maximum depth
- Performance Data
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Deviation: < ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz
- Minimum Target: 8.9 mm diameter
- Construction Materials
- Probe Tip: Polyphenylene Sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Seal Type: Viton® O-ring
- Cable Insulation: FEP Material
- Installation Guide
- Recommended Torque: Finger tight
- Maximum Torque: 0.56 N•m (5 in•lb)
- Bend Radius: 25.4 mm minimum
- Wire Size: 0.2 to 1.5 mm²
- Max Cable Length: 305 meters
- Environmental Ratings
- Operating Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Pressure Seal: Viton® O-ring
- Chemical Resistance: Enhanced protection
Package Includes
- One 3300 NSv Proximity Probe
- 1.0 Meter FEP Cable
- ClickLoc Connector
- Installation Manual
