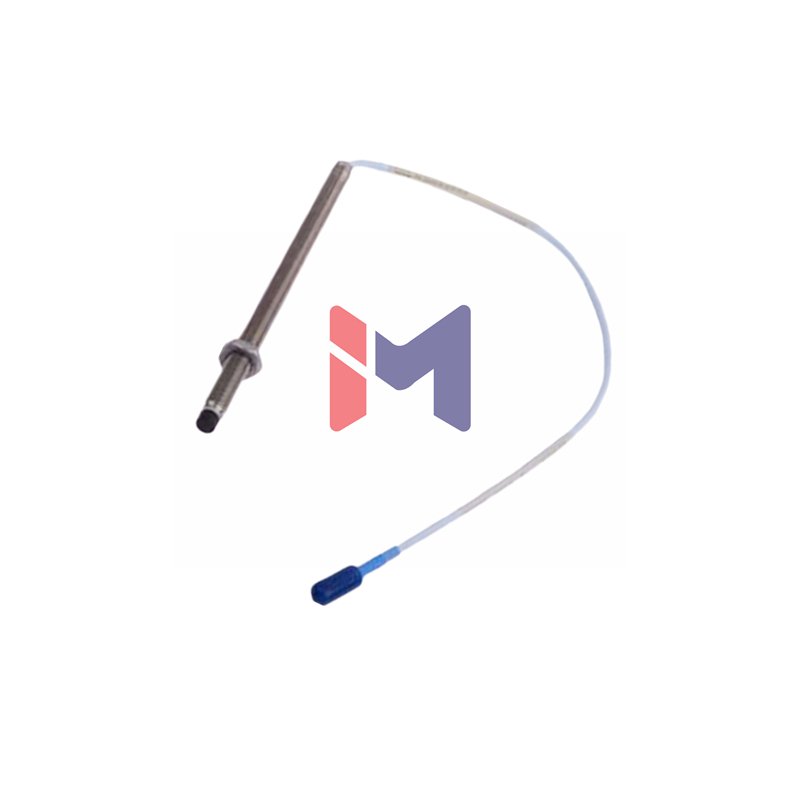

Bently Nevada 330903-00-05-10-01-05: Premium 3300 NSv Proximity Probe
Discover exceptional performance with the 3300 NSv proximity probe from Bently Nevada. This advanced sensor delivers superior chemical resistance and precise measurement capabilities for demanding industrial applications. Its multiple agency approvals make it ideal for global deployments.
Product Configuration Breakdown
Complete Part Number Analysis:
- 330903 – Base model: 3300 NSv Probe, M8X1 thread, no armor
- 00 – Unthreaded length: 00 mm
- 05 – Case length: 50 mm overall dimension
- 10 – Cable length: 1.0 meter (39 inches)
- 01 – Connector: Miniature coaxial ClickLoc with protector
- 05 – Approvals: Multiple agency certifications included
Technical Specifications
Electrical Characteristics:
- Probe DC Resistance: 4.2 Ω ± 0.5 Ω (center to outer conductor)
- Cable Resistance: Center conductor 0.220 Ω/m, Shield 0.066 Ω/m
- Cable Capacitance: 69.9 pF/m typical performance value
- Output Impedance: 75 Ω coaxial configuration standard
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
Performance Metrics:
- Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm
- Recommended Gap: 1.0 mm (40 mils) optimal setting
- Scale Factor: 7.87 V/mm (200 mV/mil) with interchangeability
- Linearity Deviation: Less than ±0.06 mm (±2.3 mils)
- Minimum Target: 8.9 mm diameter (13 mm recommended)
Physical Properties & Environmental Ratings
- Tip Material: Polyphenylene sulfide (PPS) for chemical resistance
- Case Material: AISI 304 stainless steel construction
- Cable Type: FEP-insulated 75 Ω coaxial cable
- Temperature Range: -52°C to +177°C operational
- Bend Radius: 25.4 mm (1.0 inch) minimum bending requirement
- Installation Torque: Finger tight (0.56 N•m maximum)
- Thread Engagement: M8x1 with 12 mm maximum depth
Package Contents
- One genuine 3300 NSv Proximity Probe unit
- Miniature coaxial ClickLoc connector with protection cover
- 1.0 meter standard FEP-insulated coaxial cable
- Original factory packaging with documentation
