Description

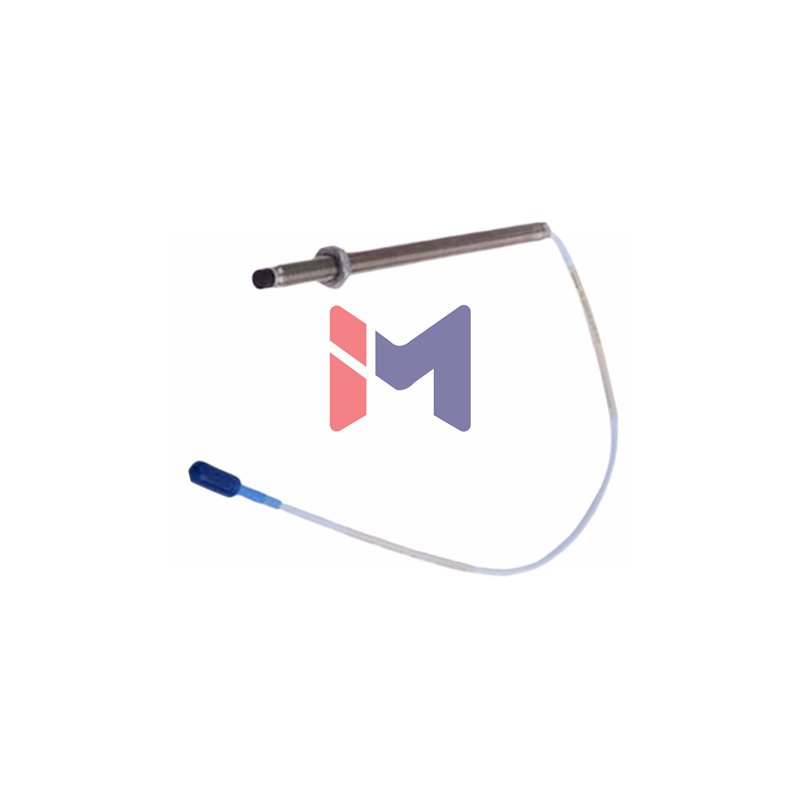

Bently Nevada 330903-00-05-05-11-05 Proximity Measurement Solution
The Bently Nevada 3300 NSv proximity probe delivers exceptional performance for industrial monitoring. This 330903-00-05-05-11-05 model combines advanced features with global certifications. It offers reliable vibration measurement in demanding environments.
Product Identification & Configuration
- Manufacturer: Bently Nevada
- Base Model: 3300 NSv Proximity Probe
- Full Part Number: 330903-00-05-05-11-05
- Thread Type: M8X1 without armor
- Unthreaded Length: 00 mm (-00-)
- Case Length: 50 mm (-05-)
- Cable Length: 0.5 meter (05)
- Connector Type: ClickLoc with FluidLoc cable (11)
- Certifications: Multiple Agency Approvals (-05)
Superior Technical Performance
- Wide linear range from 0.25 mm to 1.75 mm
- Excellent sensitivity of 7.87 V/mm (±12.5%)
- Outstanding linearity within ±0.06 mm
- Broad frequency response from 0 to 10 kHz
- Low probe resistance of 4.0 Ω ± 0.5 Ω
- Stable capacitance of 69.9 pF/m typical
- Consistent 75 Ω impedance throughout system
Environmental Specifications
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Minimum Target Size: 8.9 mm diameter
- Recommended Target: 13 mm diameter
- Maximum Wiring: 305 meters field wiring
- Bend Radius: 25.4 mm minimum
- Thread Engagement: 12 mm maximum
Installation & Mounting
- Finger tight installation (max 0.56 N•m)
- Recommended gap setting of 1.0 mm
- Connector torque: 5.1 N•m recommended
- Use three-conductor shielded triad cable
- Wire gauge: 0.2 to 1.5 mm² (16-24 AWG)
- Maximum connector torque: 7.3 N•m
