Description

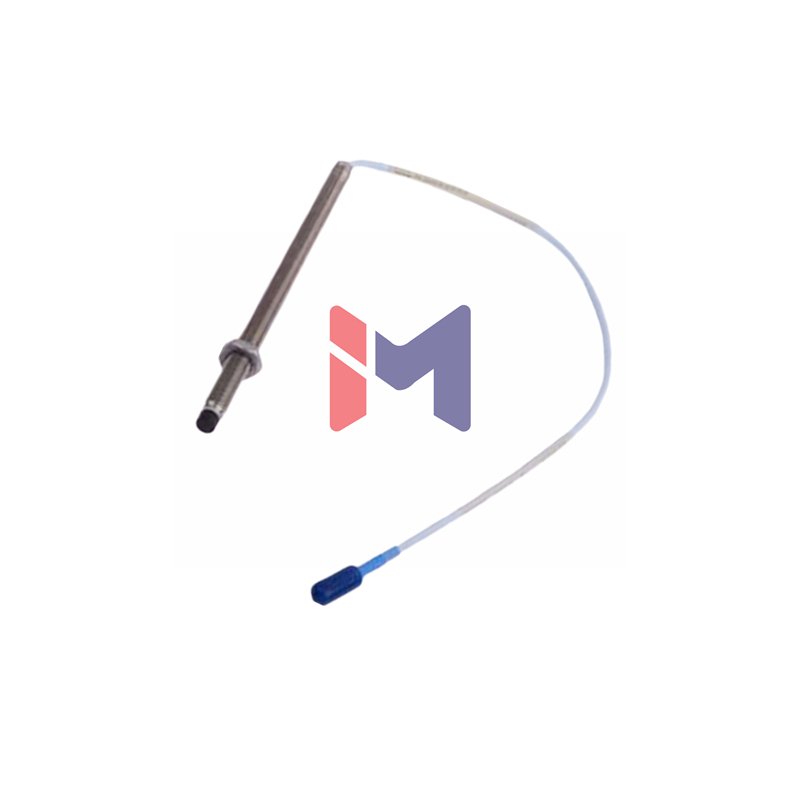

Bently Nevada 3300 NSv Proximity Probe – High-Performance Vibration Monitoring
The Bently Nevada 3300 NSv Proximity Probe delivers advanced industrial vibration and position measurement. It provides superior chemical resistance and side-view characteristics versus older models. This 3300 NSv probe works seamlessly with previous 3300 RAM system components. It is perfect for critical applications such as process compressors.
Complete Model Suffix: 330903-00-05-05-11-00
Click to view the detailed suffix breakdown
- 330903: 3300 NSv Probe, M8x1 thread, no armor
- -00-: Unthreaded Length = 00 mm
- -05-: Overall Case Length = 50 mm
- -05: Total Cable Length = 0.5 meter (20 inches)
- -11: Mini Coaxial ClickLoc Connector with Protector & FluidLoc Cable
- -00: Agency Approval = Not Required
Key Technical Specifications & Data
- Brand: Bently Nevada
- Model: 3300 NSv
- Linear Range: 1.5 mm (60 mils), from 0.25 mm to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Linearity (DSL): Less than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Probe Resistance (0.5m): 4.0 ± 0.5 ohms
- Temp Range: -52°C to +177°C (-62°F to +351°F)
- Tip Material: Chemical-resistant Polyphenylene sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Min. Target Size: 13 mm (0.5 in) diameter recommended
Installation & Setup Guide
- Set the probe-to-target gap to the recommended 1.0 mm (40 mils).
- Ensure the target surface is flat and meets the minimum size requirement.
- Apply 5.1 N•m (45 in•lb) of torque to the connector.
- Maintain a minimum cable bend radius of 25.4 mm (1.0 in).
Packaging & Shipping Info
- The product is new and original in factory sealing.
- Your order includes one (1) Bently Nevada 3300 NSv probe.
- Global shipping via FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- Is the 3300 NSv probe compatible with older systems?
Yes, it is fully interchangeable with the previous 3300 RAM probe and cables. - What is the main advantage of the NSv probe?
It offers significantly increased chemical resistance for harsh environments. - What is the maximum cable length supported?
Up to 305 meters (1000 feet) between the sensor and monitor.
