Description

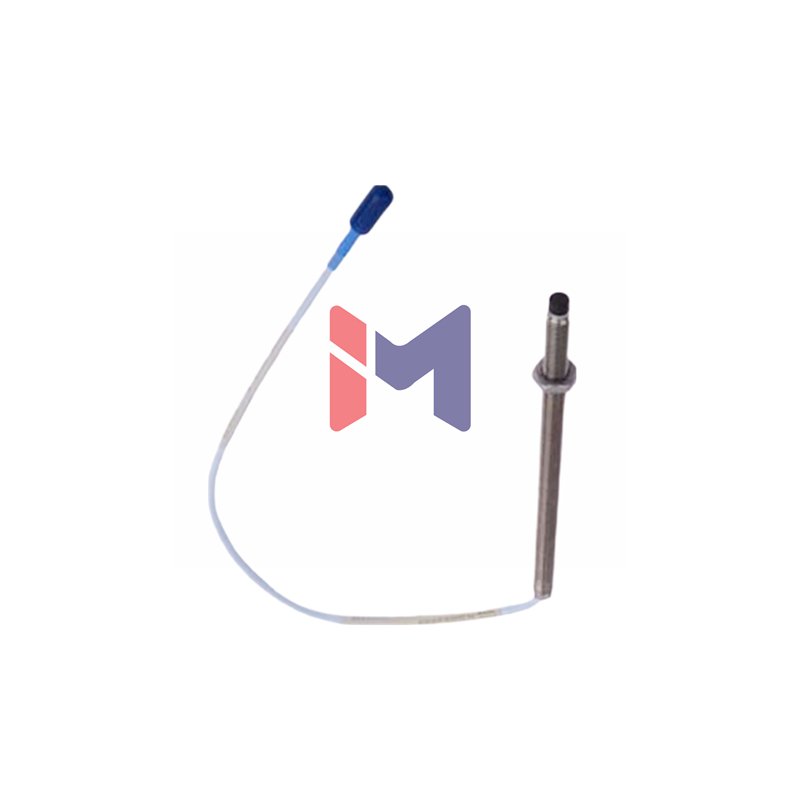

Bently Nevada 3300 NSv Proximity Probe – High-Performance Sensing Solution
Discover the Bently Nevada 3300 NSv Proximity Probe, designed for precision vibration and position measurement in industrial applications. This probe offers superior chemical resistance and electrical performance. It is ideal for demanding environments including process compressors and rotating machinery.
Full Suffix Information
Expand Full Part Number Details
- Brand: Bently Nevada
- Model: 330903-00-05-05-02-00
- Thread Type: M8X1
- Armor: Without Armor
- Unthreaded Length: 00 mm
- Case Length: 50 mm
- Cable Length: 0.5 m (20 in)
- Connector: Miniature Coaxial ClickLoc
- Agency Approval: Not Required
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Part Number: 330903-00-05-05-02-00
- DC Resistance: 4.0 ± 0.5 Ω (0.5 m cable)
- Linear Range: 0.25–1.75 mm (10–70 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (±12.5% / -20%)
- Frequency Response: 0–10 kHz (±3 dB)
- Linearity (DSL): < ±0.06 mm
- Minimum Target Size: 8.9 mm (0.35 in)
- Cable Type: 75 Ω coaxial with FEP insulation
- Operating Temperature: -52°C to +177°C
- Probe Case Material: AISI 304 SST
- Tip Material: Polyphenylene Sulfide (PPS)
- Max Torque: 0.56 N•m (5 in•lb)
Installation Guidelines
- Use a recommended gap setting of 1.0 mm (40 mils)
- Engage M8x1 threads up to 12 mm maximum
- Apply no more than 0.56 N•m probe case torque
- Maintain a minimum bend radius of 25.4 mm
- Use shielded triad field wiring (16–24 AWG)
- Limit field wiring length to 305 m max
Packaging & Delivery
- New and original unit in factory packaging
- Shipped via FedEx, UPS, or DHL
- Order includes probe and connector only
FAQ
- Q: Is the 3300 NSv compatible with older 3300 RAM systems?
A: Yes, it is mechanically and electrically interchangeable. - Q: What is the maximum cable length?
A: Total probe cable can be up to 7 meters. - Q: Can this probe be used in high-pressure applications?
A: It seals differential pressure via a Viton O-ring.
