Description

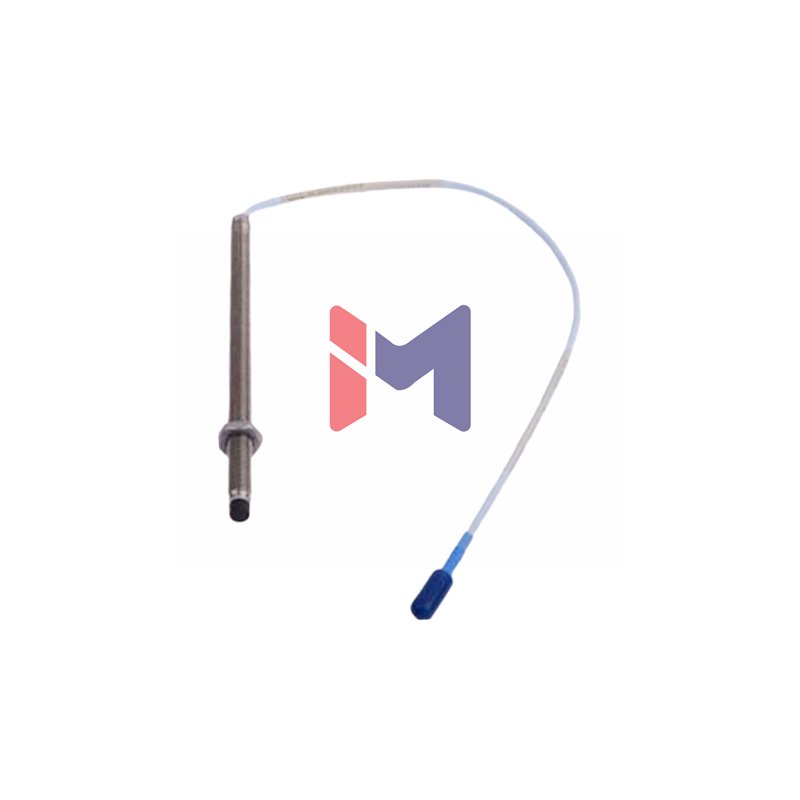

Bently Nevada 330903-00-04-50-11-00: Industrial-Grade Proximity Probe
Discover the advanced 3300 NSv Proximity Probe from Bently Nevada, engineered for precision vibration monitoring. This 5.0-meter probe features enhanced chemical resistance and superior performance in harsh industrial environments. Its innovative design ensures reliable machinery protection and accurate measurement data.
Detailed Product Identification
- Manufacturer: Bently Nevada
- Product Line: 3300 NSv Series
- Base Model: 330903
- Complete Part Number: 330903-00-04-50-11-00
Configuration Breakdown
- 330903: Base probe model with M8X1 thread
- -00-: 00 mm unthreaded length section
- -04-: 40 mm overall case length
- 50: 5.0 meters total cable length
- 11: ClickLoc connector with protector and FluidLoc cable
- 00: No agency approvals required
Construction & Materials
- Probe Case: AISI 304 stainless steel
- Probe Tip: Polyphenylene sulfide (PPS)
- Cable Type: 75-ohm coaxial with FEP insulation
- Sealing: Viton O-ring for pressure differentials
- Connector: Miniature coaxial ClickLoc with protector
Environmental Specifications
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Maximum Installation Torque: 0.56 N•m
- Thread Engagement: 12 mm minimum for M8X1
Electrical Characteristics
- Cable Resistance: Center conductor 0.220 Ω/m
- Shield Resistance: 0.066 Ω/m typical
- Cable Capacitance: 69.9 pF/m standard
- Field Wiring: Up to 305 meters maximum length
- Wire Gauge: 0.2 to 1.5 mm² (16-24 AWG)
Technical Questions & Answers
- What makes FluidLoc cable different from standard cable?
FluidLoc cable provides extra protection against fluids and chemicals in tough environments. - Can this probe measure smaller shafts than 13 mm?
Yes, but scale factor may change below 13 mm diameter targets. - What is the maximum pressure this probe can handle?
The probe seals differential pressure but isn’t pressure tested before shipping. - How does temperature affect probe performance?
The probe operates reliably from -52°C to +177°C without performance loss. - Is this probe compatible with existing 3300 systems?
Yes, it works with previous 3300 RAM probe systems seamlessly.
