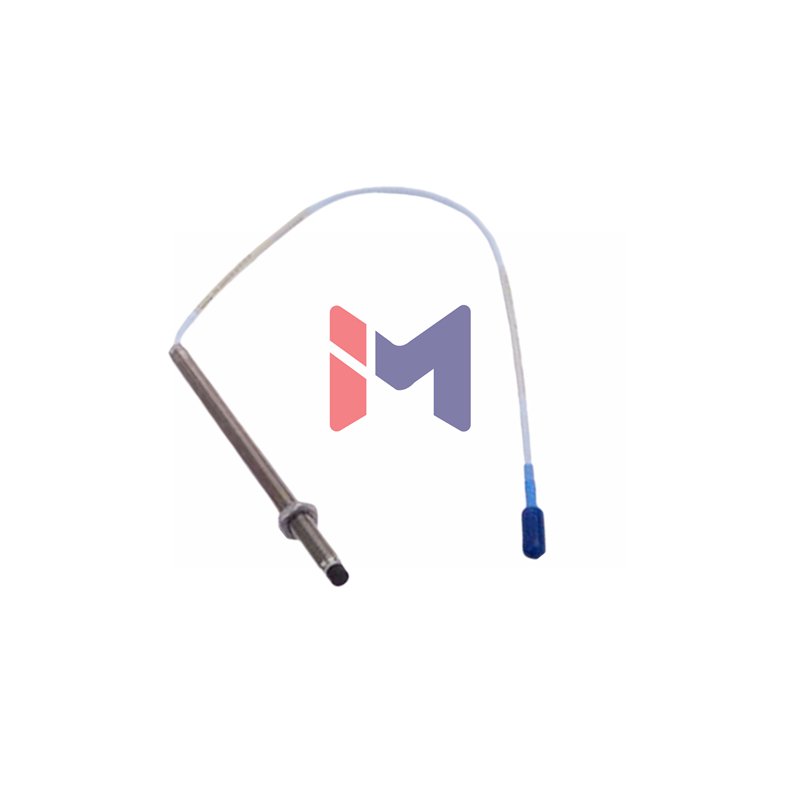

Bently Nevada 330903-00-04-50-02-05 Proximity Probe
Discover precision monitoring with the Bently Nevada 3300 NSv Proximity Probe, featuring a versatile 40mm case and standard cable configuration. This industrial sensor delivers exceptional performance with multiple international certifications. It maintains full backward compatibility with existing 3300 RAM systems while offering enhanced chemical resistance.
📋 Product Identification & Configuration
- Manufacturer: Bently Nevada
- Base Model: 330903 (3300 NSv Series)
- Complete Part Number: 330903-00-04-50-02-05
- Thread Type: M8X1 without armor
- Condition: New & Original Factory Packaging
🔧 Configuration Breakdown
- Unthreaded Length (-00-): 00 mm straight shaft design
- Case Length (-04-): 40 mm optimal mounting length
- Cable Length (-50-): 5.0 meters standard reach
- Connector Type (-02-): Miniature coaxial ClickLoc
- Approval Option (-05-): Multiple international certifications
📊 Performance Specifications
- Electrical Resistance: 5.3 Ω ± 0.7 Ω (center to outer conductor)
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
- Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Non-Linearity: < ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (±3 dB with 305m wiring)
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Extension Cable Resistance: Center: 0.220 Ω/m, Shield: 0.066 Ω/m
🏗️ Construction Details
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 stainless steel
- Sealing: Viton O-ring for pressure differential
- Cable Type: 75 Ω coaxial with FEP insulation
- Recommended Torque: Finger tight + 1/16 turn
- Maximum Torque: 0.56 N•m (5 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
🌡️ Environmental Ratings
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Pressure Rating: Viton O-ring sealed design
- Target Requirements: Minimum 8.9 mm, Recommended 13 mm diameter
🔌 Installation & Wiring
- Field Wiring: 0.2-1.5 mm² (16-24 AWG) shielded triad cable
- Maximum Distance: 305 meters (1,000 feet) from proximitor
- Thread Engagement: 12 mm minimum for M8x1 threads
- Gap Setting: Recommended 1.0 mm (40 mils)
📦 Shipping & Delivery
- Packaging: Factory sealed original packaging
- Shipping Methods: FedEx, UPS, DHL international services
- Handling: ESD protected packaging
❓ Technical Questions
- What are the main advantages of the standard cable configuration?
Ideal for general industrial applications without special environmental requirements. - How does the 40mm case length benefit different installations?
Provides optimal balance for various mounting depths and applications. - Which international certifications does this model include?
Multiple agency approvals ensuring compliance with global standards. - Can this probe be used in high-vibration environments?
Yes, designed specifically for demanding industrial vibration monitoring. - How does temperature affect measurement accuracy?
Maintains stable performance across extreme temperature ranges.
🔍 Model Comparison
- Compared to 330903-02-16-05-02-00: Different case length and thread configuration
- Compared to 330903-00-06-10-02-05: Shorter cable length and different case size
