Description

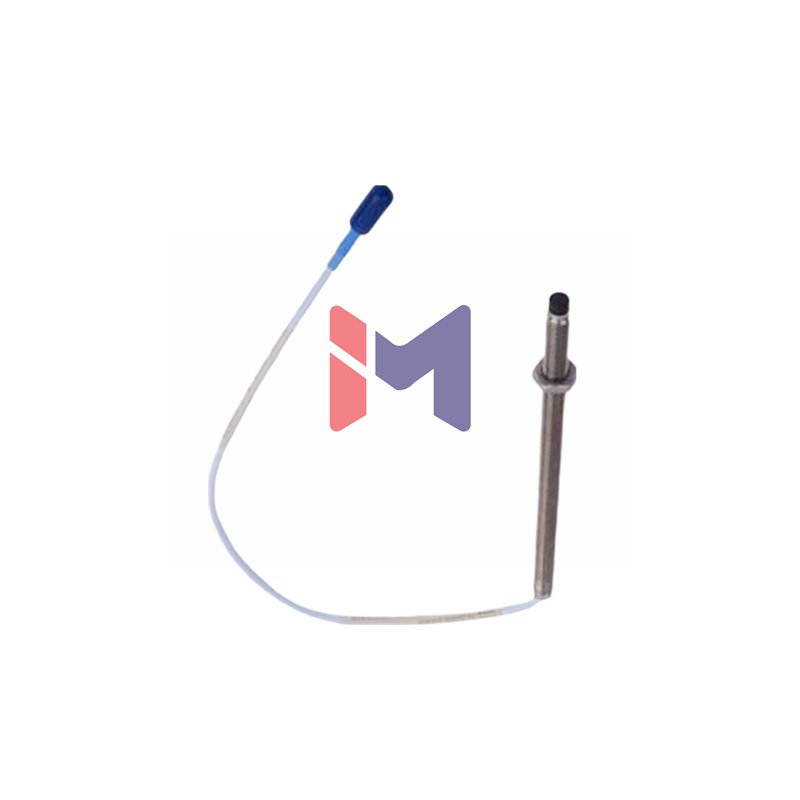

Bently Nevada 3300 NSv Proximity Probe: Precision Measurement Solution
The Bently Nevada 3300 NSv Proximity Probe sets new standards in vibration monitoring technology. This 330903-00-04-50-01-00 model offers enhanced performance for industrial applications. Its advanced design ensures accurate measurements in challenging environments. Professionals choose Bently Nevada for critical machinery protection systems worldwide.
Product Identification & Configuration
- Manufacturer: Bently Nevada
- Product Line: 3300 NSv Proximity Probes
- Part Number: 330903-00-04-50-01-00
- Condition: New & Original in Factory Packaging
- Shipping: FedEx, UPS, DHL Express Available
Detailed Configuration Breakdown
- Base Model: 330903 (3300 NSv Probe, M8X1 thread)
- Unthreaded Length: -00- 00 mm
- Case Length: -04- 40 mm overall length
- Cable Length: -50- 5.0 meters (16.4 feet)
- Connector Type: -01- Miniature coaxial ClickLoc with protector
- Agency Approval: -00- Not required for this configuration
Technical Performance Specifications
- Electrical Resistance: 5.3 ± 0.7 ohms at 5.0 meter length
- Linear Measurement Range: 1.5 mm (60 mils) total range
- Optimal Gap Setting: 1.0 mm (40 mils) from target surface
- Sensitivity: 7.87 V/mm (200 mV/mil) incremental scale factor
- Linearity Error: Less than ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Minimum Target Size: 8.9 mm diameter for accurate readings
- Cable Capacitance: 69.9 pF/m typical for extension cables
Physical Construction Details
- Probe Tip Material: Chemical-resistant Polyphenylene sulfide (PPS)
- Case Material: Durable AISI 304 stainless steel construction
- Cable Specification: 75 Ω coaxial with FEP insulation
- Operating Temperature: -52°C to +177°C extreme range
- Minimum Bend Radius: 25.4 mm (1.0 inch) for cable protection
- Maximum Torque: 0.56 N•m (5 in•lb) for safe installation
