Description

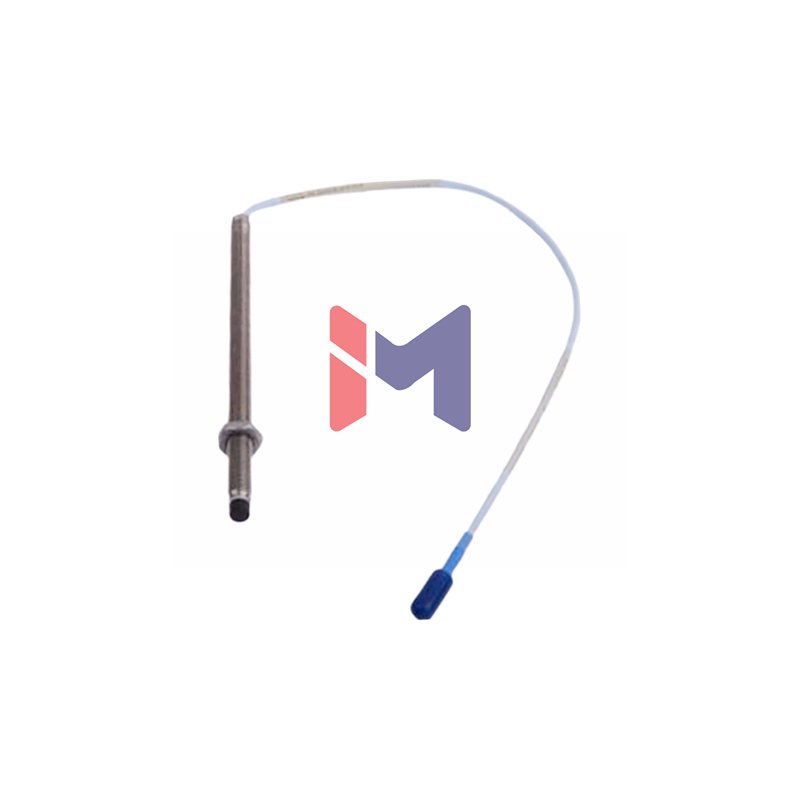

Bently Nevada 3300 NSv Proximity Probe – Advanced Sensing Solution
Experience superior performance with the Bently Nevada 3300 NSv Proximity Probe, model 330903-00-04-10-02-00. This professional-grade sensor delivers exceptional accuracy for industrial monitoring applications.
Product Overview
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Complete Model: 330903-00-04-10-02-00
- Condition: New & Original Factory Packaging
Technical Specifications
- Measurement Range: 1.5 mm linear range (0.25 to 1.75 mm)
- Recommended Gap: 1.0 mm (40 mils) from target surface
- Sensitivity: 7.87 V/mm (200 mV/mil) incremental scale factor
- Accuracy: ±0.06 mm deviation from straight line
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Electrical Resistance: 4.2 ± 0.5 ohms (1.0 meter length)
- Temperature Range: -52°C to +177°C operating capability
- Target Size: Minimum 13 mm diameter (8.9 mm absolute minimum)
Physical Construction
- Thread Type: M8X1 without protective armor coating
- Case Length: 40 mm overall case dimension
- Cable Length: 1.0 meter (39 inches) total probe length
- Connector Type: Miniature coaxial ClickLoc design
- Tip Material: Polyphenylene sulfide (PPS) for chemical resistance
- Case Material: AISI 304 stainless steel construction
- Insulation: Fluoroethylene propylene (FEP) insulated cable
Installation Requirements
- Mounting Torque: 5.1 N•m (45 in•lb) recommended for M8x1 thread
- Thread Engagement: Maximum 12 mm length for secure mounting
- Field Wiring: Three-conductor shielded triad cable required
- Maximum Distance: 305 meters between probe and monitor
- Bend Radius: 25.4 mm minimum bending radius for cable protection
