Description

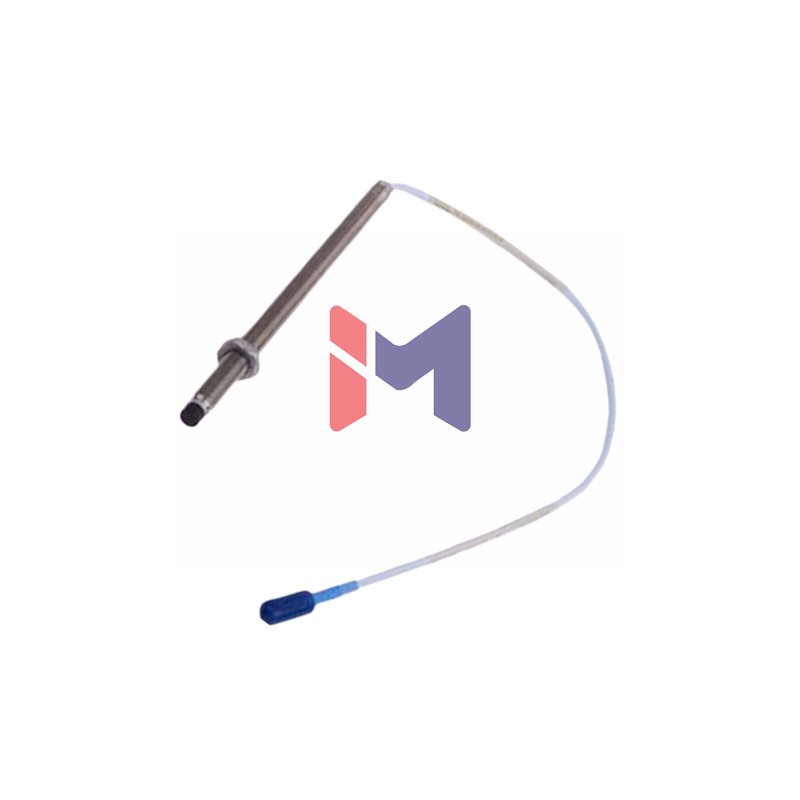

Bently Nevada 3300 NSv Proximity Probe – 330903-00-04-05-11-05
Discover the advanced 3300 NSv Proximity Probe from Bently Nevada. This specific model 330903-00-04-05-11-05 offers superior performance for industrial monitoring applications. It features enhanced chemical resistance and improved side-view characteristics. Professionals choose this probe for critical machinery protection in harsh environments.
Product Configuration Details
- 330903: Base model for M8X1 thread probe without armor
- 00: Unthreaded length measures 0 millimeters
- 04: Compact overall case length of 40 mm
- 05: Cable length option of 0.5 meter (20 inches)
- 11: ClickLoc connector with FluidLoc cable technology
- 05: Multiple agency approvals for global compliance
Technical Specifications & Performance Data
- Electrical Resistance: 4.0 Ω ± 0.5 (for 0.5m cable length)
- Extension Cable Resistance: Center conductor 0.220 Ω/m
- Extension Cable Capacitance: 69.9 pF/m typical value
- Linear Measurement Range: 1.5 mm (60 mils) total range
- Recommended Gap Setting: Optimal at 1.0 mm (40 mils)
- Incremental Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz with minimal signal loss
- Minimum Target Size: 8.9 mm diameter for accurate readings
- Operating Temperature: Wide range from -52°C to +177°C
- Maximum Torque: 0.56 N•m (5 in•lb) for safe installation
- Minimum Bend Radius: 25.4 mm (1.0 in) for cable protection
