Description

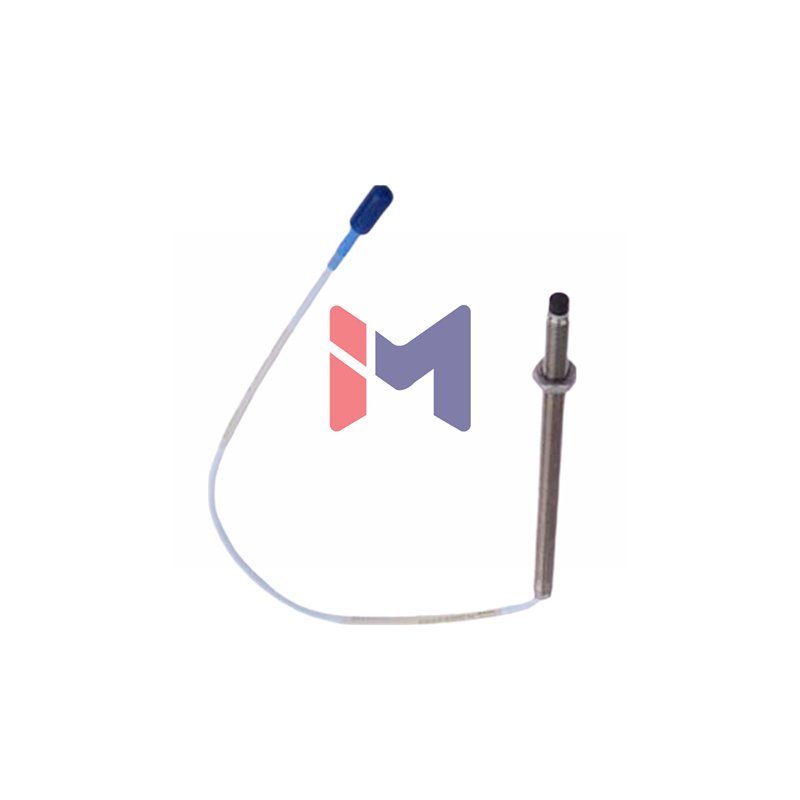

Bently Nevada 3300 NSv Proximity Sensor: Precision Measurement Solution
Discover the exceptional 330903-00-04-05-02-CN from the advanced 3300 NSv series by Bently Nevada. This M8X1 threaded proximity probe offers superior performance with country-specific approvals and enhanced chemical resistance for demanding industrial environments.
Technical Configuration & Specifications
- Complete Part Number: 330903-00-04-05-02-CN
- Thread Design: M8X1 without armor protection
- Unthreaded Section: 00 mm for direct mounting
- Case Dimensions: 40 mm overall length
- Cable Length: 0.5 meter (20 inches)
- Connection System: 02 Miniature coaxial ClickLoc with standard cable
- Compliance: CN Country Specific Approval
- Electrical Resistance: 4.0 Ω ± 0.5 at 0.5 meter length
- Measurement Range: 1.5 mm (60 mils) linear range
- Optimal Gap Setting: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (+0, -3 dB)
- Temperature Tolerance: -52°C to +177°C operating range
- Cable Specifications: 75 Ω coaxial with FEP insulation
