Bently Nevada 3300 NSv Proximity Probe – Industrial Measurement Excellence
Discover precision engineering with the Bently Nevada 3300 NSv Proximity Probe, featuring enhanced connectivity options and multiple agency certifications. This advanced vibration sensor delivers superior performance in demanding industrial environments with its robust construction and reliable measurement capabilities.

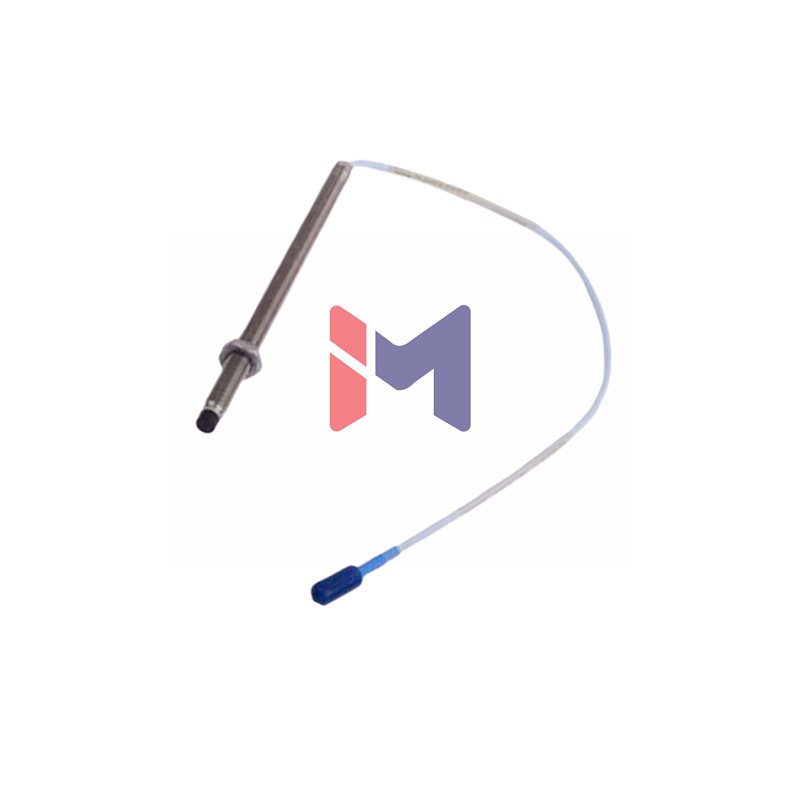

📁 Product Configuration: 330903-00-04-05-02-05
| Suffix Segment | Configuration | Specification |
|---|---|---|
| 330903 | Base Model | 3300 NSv Probe, M8X1 thread, without armor |
| -00- | Unthreaded Length | 00 mm |
| -04- | Case Length | 40 mm overall length |
| -05 | Cable Length | 0.5 meter (20 inches) |
| -02 | Connector Type | Miniature coaxial ClickLoc, standard cable |
| -05 | Certification | Multiple agency approvals |
🔬 Technical Excellence
Measurement Performance
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils) for optimal performance
- Sensitivity: 7.87 V/mm (200 mV/mil) with ±12.5%/-20% tolerance
- Linearity: Less than ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Target Requirements: Minimum 8.9mm, Recommended 13mm diameter
Electrical Specifications
- Probe Resistance: 4.0 ± 0.5 ohms (0.5m length)
- Cable Resistance: Center: 0.220 Ω/m, Shield: 0.066 Ω/m
- Cable Capacitance: 69.9 pF/m typical
- System Impedance: 75 Ω coaxial design
- Field Wiring: 0.2-1.5 mm² (16-24 AWG), max 305m length
- Connector Type: Miniature coaxial ClickLoc
Mechanical Design
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Cable Insulation: Fluoroethylene propylene (FEP)
- Thread Specification: M8x1, 12mm maximum engagement
- Installation Torque: Finger tight (Max 0.56 N•m)
- Bend Radius: 25.4mm minimum
- Pressure Sealing: Viton O-ring design
📦 Ordering & Delivery
- Product Condition: New & Original in Factory Packaging
- Shipping Options: FedEx, UPS, DHL Express available
- Packaging: Protective industrial packaging
- Global Availability: Worldwide shipping network
- Processing Time: Typically ships within 1-2 business days
