Description

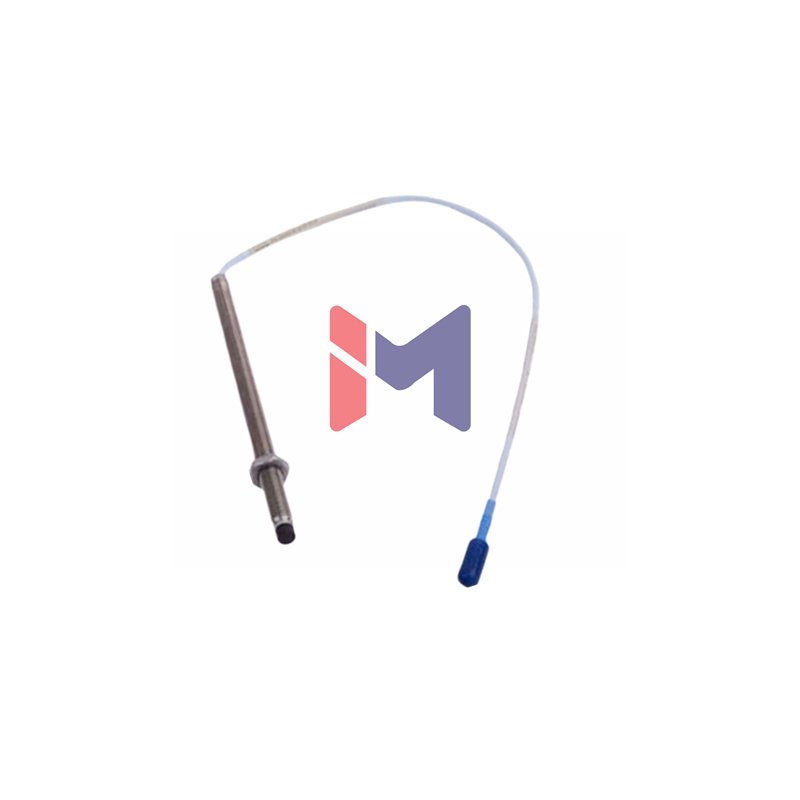

Discover the Bently Nevada 330903-00-03-70-12-00 proximity probe from the advanced 3300 NSv series. This factory-fresh sensor delivers exceptional vibration and position monitoring for industrial machinery. The probe offers superior chemical resistance and compatibility with previous 3300 RAM systems.
Technical Specifications
- Brand: Bently Nevada
- Model: 330903-00-03-70-12-00
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from target
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity: Better than ±0.06 mm (±2.3 mils) deviation
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Resistance: 5.9 ± 0.9 ohms for 7.0 meter length
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
- Case Material: AISI 304 stainless steel
- Tip Material: Chemical-resistant PPS
- Cable Length: 7.0 meters with FEP insulation
Complete Suffix Breakdown
- 330903 – 3300 NSv Probe, M8x1 thread, no armor
- -00- – 00 mm unthreaded length
- -03- – 30 mm overall case length
- 70 – 7.0 meter total length
- 12 – Miniature coaxial ClickLoc connector, FluidLoc cable
- 00 – Agency approval not required
Installation Guidelines
- Recommended Gap: Set at 1.0 mm (40 mils) from target
- Mounting Torque: Finger tight to 0.56 N•m (5 in•lb) maximum
- Connector Torque: 5.1 N•m (45 in•lb) recommended
- Cable Bend Radius: Minimum 25.4 mm (1.0 inch)
- Field Wiring: Use shielded triad cable up to 305 meters
- Thread Engagement: Maximum 12 mm for M8x1 thread
Packaging Contents
- 1 × Bently Nevada 330903-00-03-70-12-00 Proximity Probe
- All factory-standard accessories included
- Shipping via FedEx, UPS, or DHL available
Frequently Asked Questions
- Is this probe backward compatible? Yes, it works with 3300 RAM systems
- What applications suit this probe? Ideal for process compressors and harsh environments
- How to handle small shaft measurements? Reduce gap setting for better accuracy
- What is the probe’s pressure rating? Features Viton O-ring seal for pressure applications
