Description

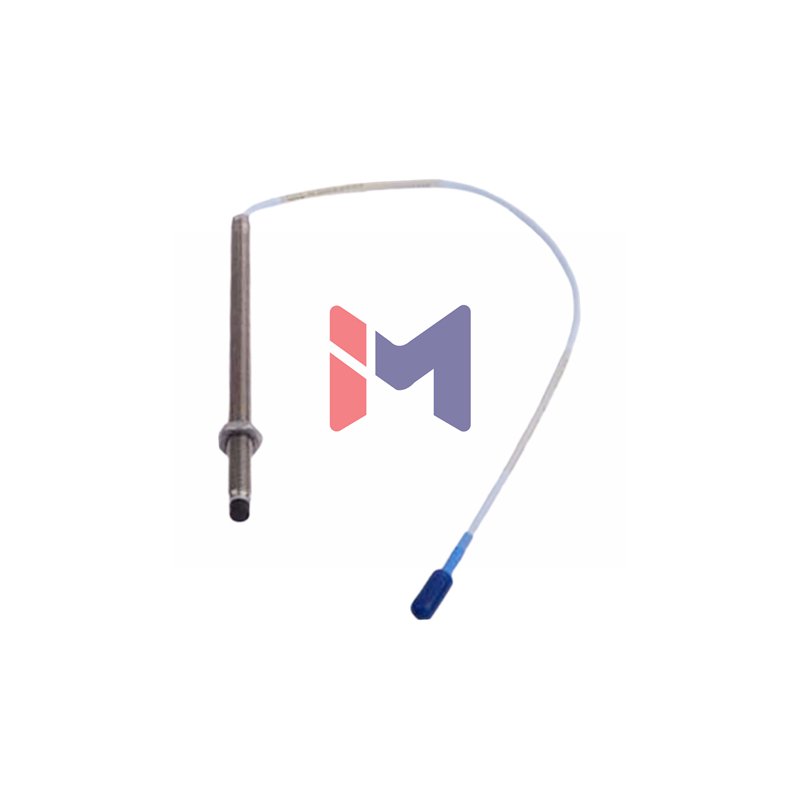

Bently Nevada 3300 NSv Proximity Probe: High-Performance Vibration Sensing
The Bently Nevada 3300 NSv Proximity Probe delivers superior performance for industrial vibration and position monitoring. It features enhanced chemical resistance and full compatibility with previous Bently Nevada probe systems. With an extended operating temperature range and high accuracy, it is perfect for turbomachinery and critical rotating equipment applications.
Complete Model Specification
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330903-00-03-50-01-05
Technical Specifications
- Linear Range: 0.25 mm to 1.75 mm (10 to 70 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Linearity (DSL): < ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Probe DC Resistance: 5.3 Ω ± 0.7 Ω
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
Mechanical & Installation Data
- Thread Type: M8X1
- Case Torque (Recommended): 5.1 N•m (45 in•lb)
- Maximum Torque: 0.56 N•m (5 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), max 305 m (1000 ft)
Packaging & Shipping
- New & Original in Factory Sealed Packaging
- Includes One 3300 NSv Proximity Probe
- Shipped Worldwide via FedEx, UPS, or DHL
Frequently Asked Questions (FAQ)
- Is the 3300 NSv probe compatible with older systems?
Yes, the 3300 NSv is fully interchangeable with the older 3300 RAM probe and cable system. - What is the main advantage of the NSv probe?
It offers significantly increased chemical resistance for demanding applications like process compressors. - What is the recommended target size?
A flat target with a minimum diameter of 13 mm (0.5 inches) is recommended for optimal performance.
