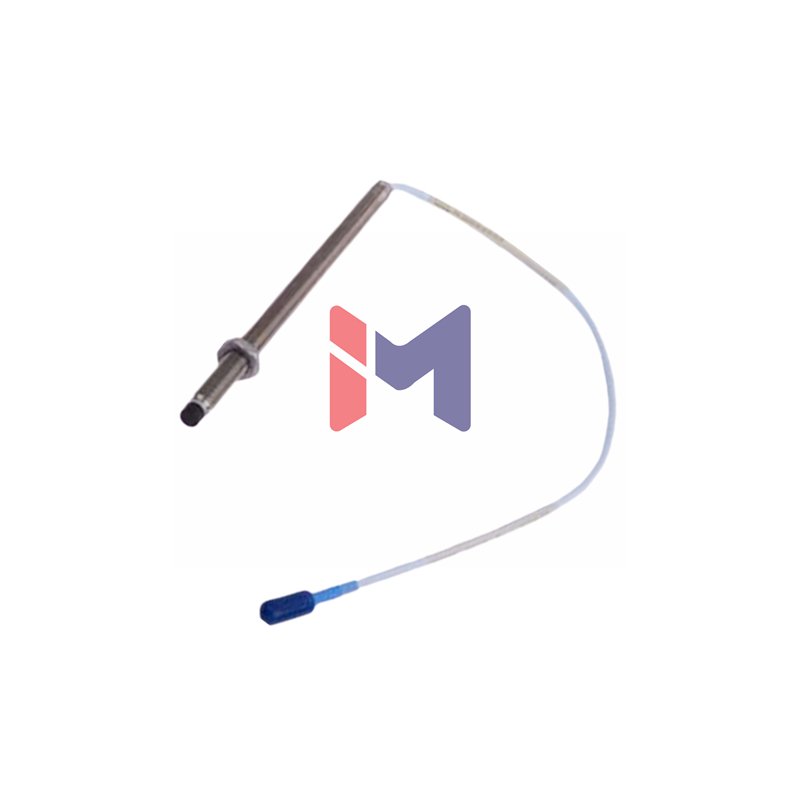

Bently Nevada 330903-00-03-50-01-00 Proximity Probe
Discover the exceptional 3300 NSv Proximity Probe from Bently Nevada, designed for precision vibration monitoring. This advanced sensor features improved chemical resistance and superior performance characteristics. The probe comes with connector protection and standard cable for reliable operation in demanding environments.
Complete Product Identification
- Manufacturer: Bently Nevada
- Base Model: 330903 – 3300 NSv Probe
- Unthreaded Length: 00 mm (Option -00-)
- Case Length: 30 mm (Option -03-)
- Cable Length: 5.0 meters (Option 50)
- Connector Type: 01 – Miniature coaxial ClickLoc with protector
- Agency Approval: 00 – Not required
Performance Specifications
- Electrical Resistance: 5.3 Ω ± 0.7 Ω at 20°C
- Measurement Range: 1.5 mm (60 mils) linear range
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%
- Frequency Response: 0-10 kHz (±3 dB typical)
- Linearity Deviation: < ±0.06 mm (±2.3 mils)
- Temperature Range: -52°C to +177°C operational
- Cable Capacitance: 69.9 pF/m typical
- Minimum Target: 8.9 mm diameter flat surface
Mechanical Properties
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Thread Type: M8X1 metric thread
- Maximum Torque: 7.3 N•m (65 in•lb)
- Installation Torque: 5.1 N•m (45 in•lb) recommended
- Bend Radius: 25.4 mm minimum
- Thread Engagement: 12 mm maximum
Expert Technical Questions
- What is the typical lifespan of this probe?
These probes typically operate for 5-7 years in normal industrial conditions. - Can this probe measure non-ferrous targets?
Yes, but may require calibration adjustments for different materials. - What maintenance does this probe require?
Regular visual inspection and periodic calibration checks are recommended. - Is special training needed for installation?
Basic mechanical skills and understanding of proximity probes are sufficient. - How does temperature affect performance?
The probe maintains stability across its entire operating temperature range.
