Description

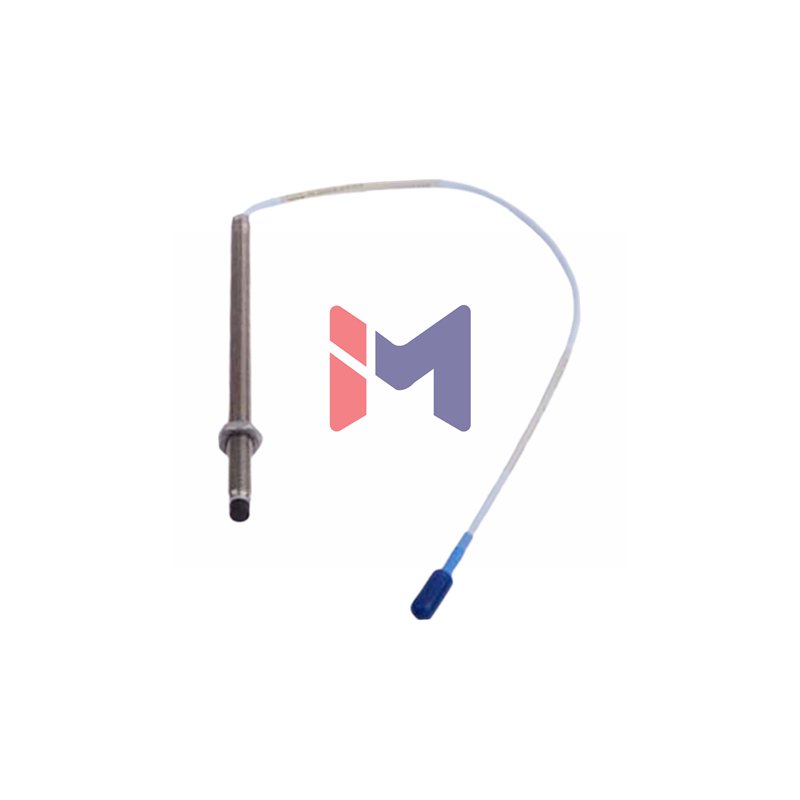

Bently Nevada 330903-00-03-10-12-05 NSv Industrial Proximity Probe
Discover the exceptional Bently Nevada 330903-00-03-10-12-05 proximity probe for precision monitoring. This factory-new sensor features specialized FluidLoc cable for demanding environments. The 3300 NSv series delivers superior performance in critical machinery applications.
Product Identification & Features
- Manufacturer: Bently Nevada
- Full Model Number: 330903-00-03-10-12-05
- Series: 3300 NSv Proximity Probes
- Condition: New & Original (Factory Sealed)
- Key Feature: FluidLoc Cable for harsh environments
- Compatibility: Fully interchangeable with 3300 RAM probes
Technical Configuration Breakdown
- 330903 – Base Model: 3300 NSv Probe, M8X1 thread
- 00 – Unthreaded Length: 0 mm
- 03 – Overall Case Length: 30 mm
- 10 – Cable Length: 1.0 meter (39 inches)
- 12 – Connector: Miniature Coaxial ClickLoc with FluidLoc
- 05 – Agency Approval: Multiple Certifications
Performance Specifications
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
- Recommended Gap: 1.0 mm (40 mils) from target surface
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity: Better than ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (±3 dB)
- DC Resistance: 4.2 ± 0.5 ohms (1.0 meter cable)
- Temperature Range: -52°C to +177°C operational
Construction & Materials
- Probe Tip: Chemical-resistant PPS material
- Probe Case: AISI 304 stainless steel construction
- Cable Type: 75 Ω coaxial with FEP insulation
- Sealing: Viton O-ring for pressure differentials
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Installation Torque: 5.1 N•m maximum recommended
Expert Technical Support
- What makes the FluidLoc cable special?
FluidLoc provides superior protection against oils and chemicals in tough environments. - Can this probe measure axial position on small shafts?
Yes, but expect scale factor changes on shafts under 13 mm diameter. - What is the typical output voltage range?
The system provides approximately -1 to -13 Vdc over the linear range. - How does this probe handle high-pressure environments?
The Viton O-ring seals differential pressure between tip and case. - Is special training needed for installation?
Basic mechanical skills suffice following the provided torque guidelines.
