Description

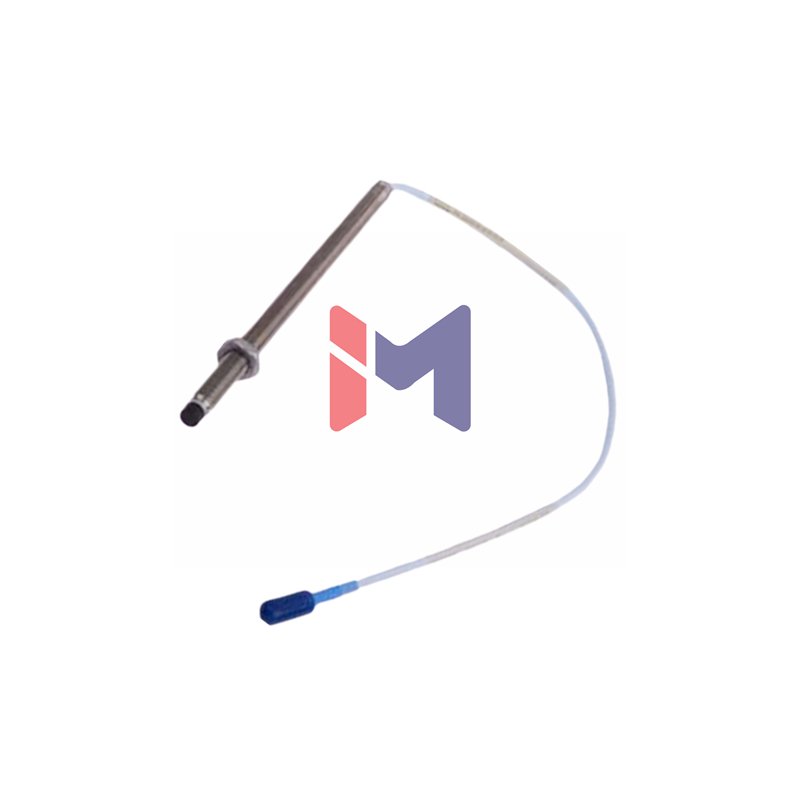

Bently Nevada 3300 NSv Proximity Probe – Model 330903-00-03-10-11-05
The Bently Nevada 3300 NSv Proximity Probe offers high-performance vibration sensing for industrial machinery. It is chemically resistant and works reliably in harsh environments. This new 330903 model comes in original factory packaging.
Full Suffix Breakdown
- 330903: Base model number
- -00-: 00 mm unthreaded length
- -03-: 30 mm overall case length
- -10-: 1.0 meter cable (39 inches)
- -11-: Miniature coaxial ClickLoc connector with FluidLoc cable
- -05-: Multiple agency approvals
Technical Specifications
- Brand: Bently Nevada
- Model: 330903-00-03-10-11-05
- Resistance: 4.2 ± 0.5 Ω
- Linear Range: 1.5 mm (60 mils)
- Frequency Response: 0–10 kHz
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Temperature Range: –52°C to +177°C
- Cable Type: 75 Ω coaxial, FEP insulated
- Connector: ClickLoc with protector
- Minimum Target Size: 13 mm (0.5 in) diameter
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
Installation Guidelines
- Use a recommended gap setting of 1.0 mm (40 mils)
- Tighten connector to 5.1 N·m (45 in·lb)
- Maximum torque: 7.3 N·m (65 in·lb) for M8x1 thread
- Do not exceed 0.56 N·m (5 in·lb) probe case torque
- Minimum bend radius: 25.4 mm (1.0 inch)
Packaging Includes
- One 3300 NSv proximity probe
- Connector protector
- Original factory box
Shipping Options
- We ship via FedEx, UPS, and DHL worldwide
Frequently Asked Questions
- Is the 3300 NSv electrically compatible with older 3300 RAM probes?
✅ Yes, it is fully interchangeable. - What is the maximum field wiring length?
✅ Up to 305 meters (1000 feet) using shielded triad cable. - Can it be used on small shafts?
✅ Yes, but scale factor may change below 13 mm diameter.
