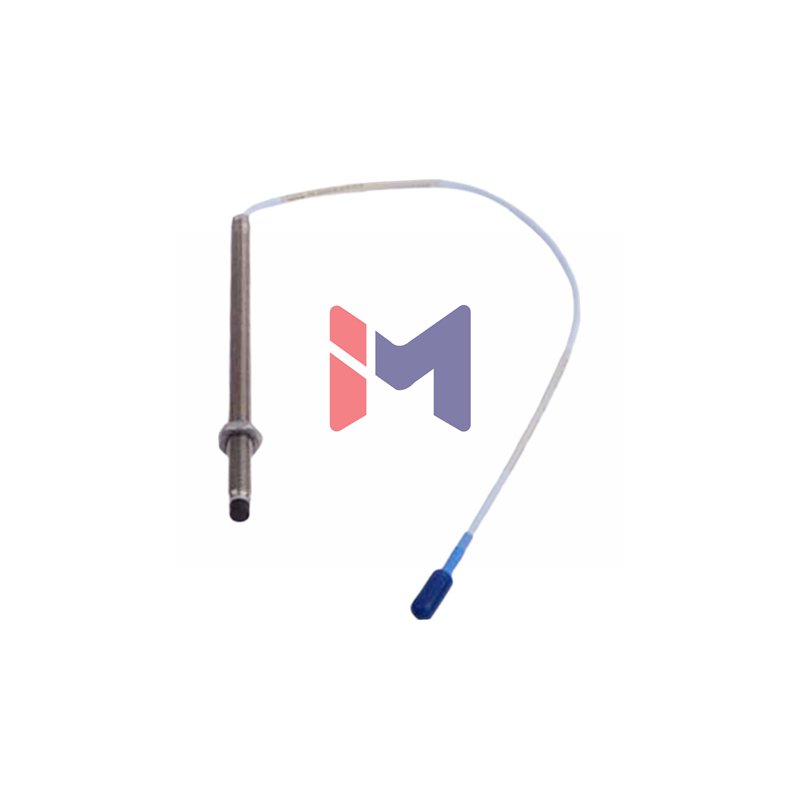

Bently Nevada 330903-00-03-10-02-05 NSv Proximity Transducer
Experience superior industrial monitoring with the 3300 NSv Proximity Probe from Bently Nevada. This genuine OEM sensor features enhanced chemical resistance and reliable performance. The probe operates effectively in extreme temperature conditions and harsh environments. Its advanced design ensures accurate vibration and position measurements.
➤ Product Identification
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Part Number: 330903-00-03-10-02-05
- Condition: New & Original Factory Sealed
➤ Configuration Breakdown
- 330903 — Base Probe Model (M8X1 Thread, No Armor)
- 00 — Unthreaded Length: 0 mm
- 03 — Case Length: 30 mm
- 10 — Cable Length: 1.0 meter (39 inches)
- 02 — Connector: ClickLoc with Standard Cable
- 05 — Certifications: Multiple Agency Approvals
➤ Performance Specifications
- Measurement Range: 1.5 mm (60 mils) linear range
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%
- Linearity: Better than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Temperature Range: -52°C to +177°C operating
- Probe Resistance: 4.2 Ω ± 0.5 Ω at 20°C
- Cable Capacitance: 69.9 pF/m typical
- Minimum Target: 8.9 mm diameter required
➤ Mechanical Properties
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Connector Type: Miniature Coaxial ClickLoc
- Maximum Torque: 0.56 N•m (5 in•lb)
- Bend Radius: 25.4 mm (1.0 inch) minimum
- Thread Engagement: 12 mm maximum for M8x1
➤ Technical Questions Answered
- What agency approvals does this model have?
This version carries multiple international certifications for global use. - Can this probe measure small diameter shafts?
Yes, but scale factor may change for shafts under 13mm diameter. - What makes the NSv superior to previous models?
It offers better chemical resistance and improved side-view characteristics. - Is pressure testing included with this probe?
Probes are not pressure tested before shipment unless specifically requested. - What cable type does this model use?
This version features standard cable with ClickLoc connector for reliable connections.
