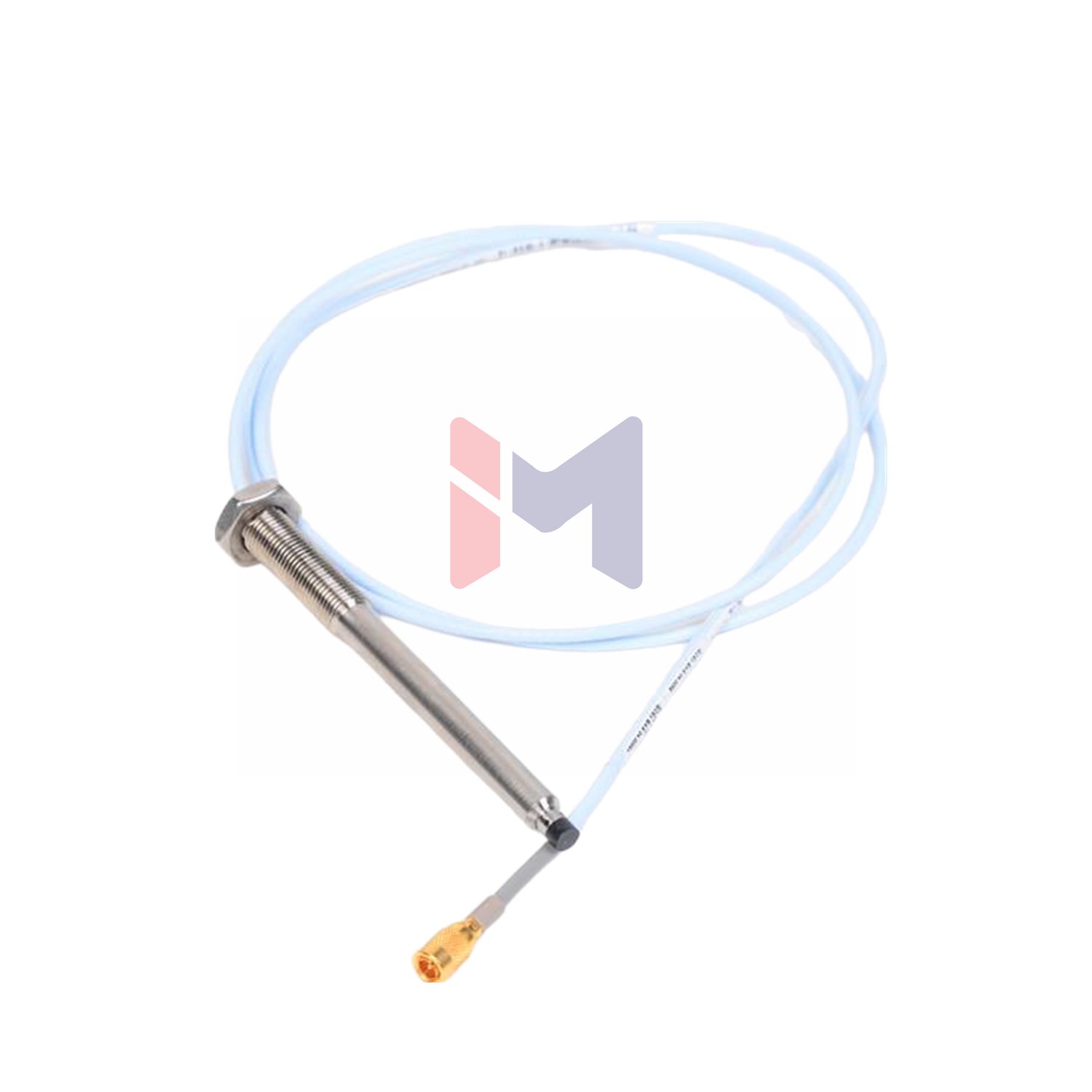

Discover the Bently Nevada 330903 NSv Proximity Probe
Meet the advanced 3300 NSv Proximity Probe from Bently Nevada, engineered for precision and durability in harsh industrial environments. This specific model 330903-00-03-05-11-00 comes with an M8x1 thread and features high-performance FluidLoc cable. Its superior chemical resistance makes it ideal for demanding process compressor applications. The probe ensures reliable vibration and position monitoring for your critical machinery.
Complete Ordering & Suffix Information
- Base Model: 330903 (3300 NSv Probe, M8X1 thread, without armor)
- Unthreaded Length: 00 (00 mm)
- Overall Case Length: 03 (30 mm)
- Total Length Option: 05 (0.5 meter/20 in)
- Connector/Cable: 11 (Miniature coaxial ClickLoc with protector, FluidLoc cable)
- Agency Approval: 00 (Not required)
Detailed Technical Specifications
- Brand: Bently Nevada
- Model: 330903-00-03-05-11-00
- Thread Size: M8x1
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity: < ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (±3 dB)
- DC Resistance: 4.0 ± 0.5 ohms (0.5m cable)
- Cable Capacitance: 69.9 pF/m typical
- Minimum Target: 8.9 mm diameter (13 mm recommended)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip: Chemical-resistant PPS material
- Case Material: AISI 304 stainless steel
- Maximum Torque: 7.3 N•m (65 in•lb) for M8x1 thread
- Thread Engagement: Maximum 12 mm for M8x1
Shipping & Packaging Details
- Condition: New & Original in factory packaging
- Includes: Probe, connector protector, and documentation
- Shipping Methods: FedEx, UPS, DHL available
- Global shipping with tracking provided
- Standard lead time: 1-3 business days for shipment
