Description

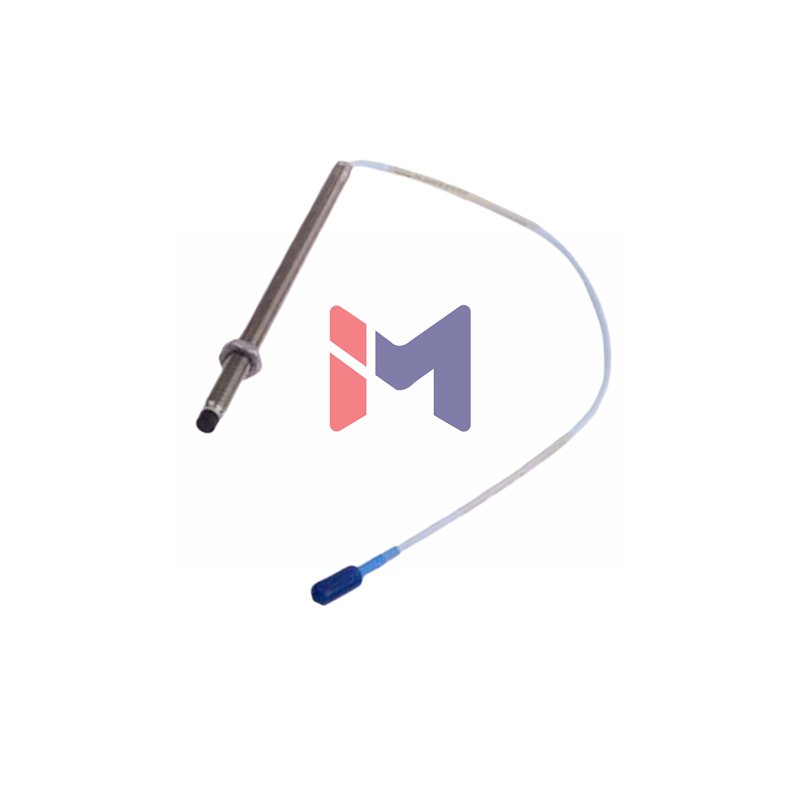

Bently Nevada 330903-00-02-10-12-00 NSv Proximity Probe
Discover the exceptional precision of the Bently Nevada 3300 NSv Proximity Probe, specifically designed for demanding industrial applications. This model 330903-00-02-10-12-00 features advanced FluidLoc cable technology for superior performance in challenging environments.
Product Configuration Details
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330903-00-02-10-12-00
- Thread Type: M8X1 without armor protection
- Unthreaded Length: 00 mm (configuration code: -00-)
- Case Length: 20 mm (configuration code: -02-)
- Cable Length: 1.0 meter (configuration code: -10-)
- Connector Type: Miniature coaxial ClickLoc (configuration code: -12-)
- Cable Technology: Special FluidLoc cable for fluid environments
- Agency Approval: Not required (configuration code: -00-)
Advanced Technical Specifications
- Electrical Resistance: 4.2 ± 0.5 ohms (probe DC resistance)
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm
- Optimal Gap Setting: 1.0 mm (40 mils) from target surface
- Voltage Sensitivity: 7.87 V/mm (200 mV/mil) incremental scale factor
- Measurement Accuracy: Better than ±0.06 mm deviation from straight line
- Frequency Response: 0 to 10 kHz with +0, -3 dB typical performance
- Temperature Range: -52°C to +177°C operational capability
- Minimum Target Size: 13 mm recommended diameter (8.9 mm absolute minimum)
- Cable Impedance: 75 Ω coaxial design with FEP insulation
- Maximum Field Wiring: 305 meters between probe and monitoring equipment
Installation & Mounting Specifications
- Recommended Torque: 5.1 N•m (45 in•lb) for M8x1 thread cases
- Maximum Thread Engagement: 12 mm for secure mounting
- Field Wiring Requirements: Three-conductor shielded triad cable
- Cable Bend Radius: 25.4 mm minimum for cable protection
- Wire Gauge: 0.2 to 1.5 mm² (16 to 24 AWG) recommended
