Description

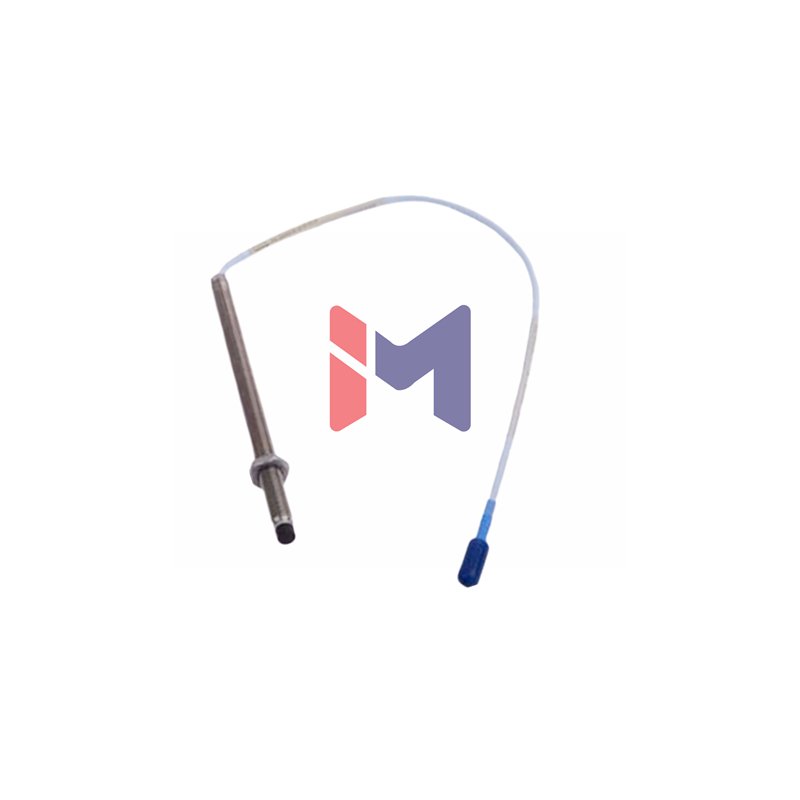

Bently Nevada 3300 NSv Proximity Probe – Advanced Monitoring Solution
Discover the precision-engineered Bently Nevada 3300 NSv Proximity Probe, designed for critical machinery monitoring in demanding industrial environments. This 330903-00-02-10-02-00 model features enhanced chemical resistance and superior performance characteristics, making it ideal for process compressor applications and other high-value assets.
Product Identification
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330903-00-02-10-02-00
- Condition: New & Original in Factory Sealed Packaging
Model Configuration Breakdown
- Base Model: 330903 (3300 NSv Probe, M8X1 thread, without armor)
- First Suffix: 00 (Unthreaded Length: 0 mm)
- Second Suffix: 02 (Overall Case Length: 20 mm)
- Third Suffix: 10 (Cable Length: 1.0 meter/39 inches)
- Fourth Suffix: 02 (Connector: Miniature coaxial ClickLoc, standard cable)
- Fifth Suffix: 00 (Agency Approval: Not required)
Technical Specifications & Performance Data
- Electrical Characteristics:
- DC Resistance: 4.2 Ω ± 0.5 (for 1.0m cable)
- Impedance: 75 Ω coaxial design
- Cable Capacitance: 69.9 pF/m typical
- Center Conductor Resistance: 0.220 Ω/m
- Shield Resistance: 0.066 Ω/m
- Measurement Performance:
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Linearity Deviation: < ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Mechanical Properties:
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Thread Type: M8X1
- Maximum Torque: 0.56 N•m (5 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Environmental Ratings:
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Sealing: Viton O-ring for differential pressure
Installation Requirements
- Target Specifications:
- Minimum Target Size: 8.9 mm diameter
- Recommended Minimum: 13 mm diameter
- Wiring Guidelines:
- Field Wiring: 0.2 to 1.5 mm² (16-24 AWG)
- Recommended: Three-conductor shielded triad cable
- Maximum Cable Length: 305 meters (1000 feet)
- Mounting Instructions:
- Recommended Torque: Finger tight plus 1/4 turn
- Maximum Thread Engagement: 12 mm for M8x1
- Connector Torque: 5.1 N•m (45 in•lb) recommended
Shipping & Delivery Information
- Available for immediate shipment from stock
- Global delivery via FedEx, UPS, and DHL
- Standard lead time: 1-3 business days
- Express shipping options available
