Bently Nevada 3300 NSv Compact Proximity Probe: Advanced Monitoring Solution

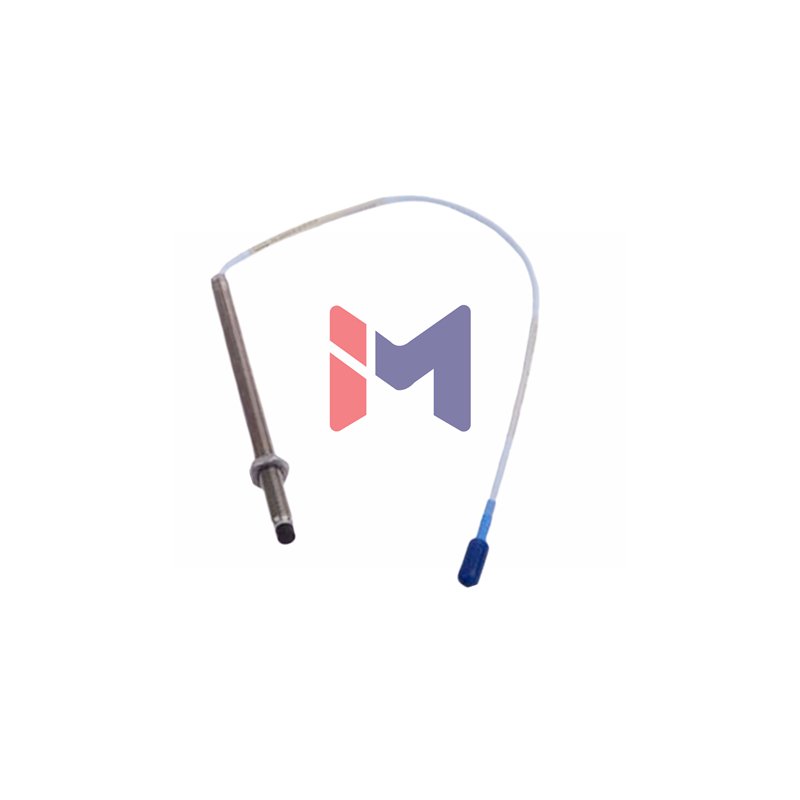

Introducing the 330903-00-02-10-01-00, a compact and versatile proximity probe from the renowned 3300 NSv series by Bently Nevada. This M8X1 thread probe features a short 20mm case and 1.0 meter cable, perfect for space-constrained applications requiring precise vibration monitoring.
Product Configuration Details
- Complete Part Number: 330903-00-02-10-01-00
- Thread Specification: M8X1 without armor protection
- Unthreaded Length: 00 mm for direct surface mounting
- Case Dimensions: Compact 20 mm overall length
- Cable Length: 1.0 meter (39 inches) total length
- Connection System: 01 Miniature coaxial ClickLoc with connector protector
- Certification Status: 00 No agency approvals required
- Electrical Resistance: 4.2 Ω ± 0.5 at 1.0 meter length
- Measurement Range: 1.5 mm (60 mils) full linear range
- Optimal Gap Setting: 1.0 mm (40 mils) recommended
- Voltage Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Temperature Range: -52°C to +177°C operational
- Cable Type: 75 Ω coaxial with FEP insulation
