Description

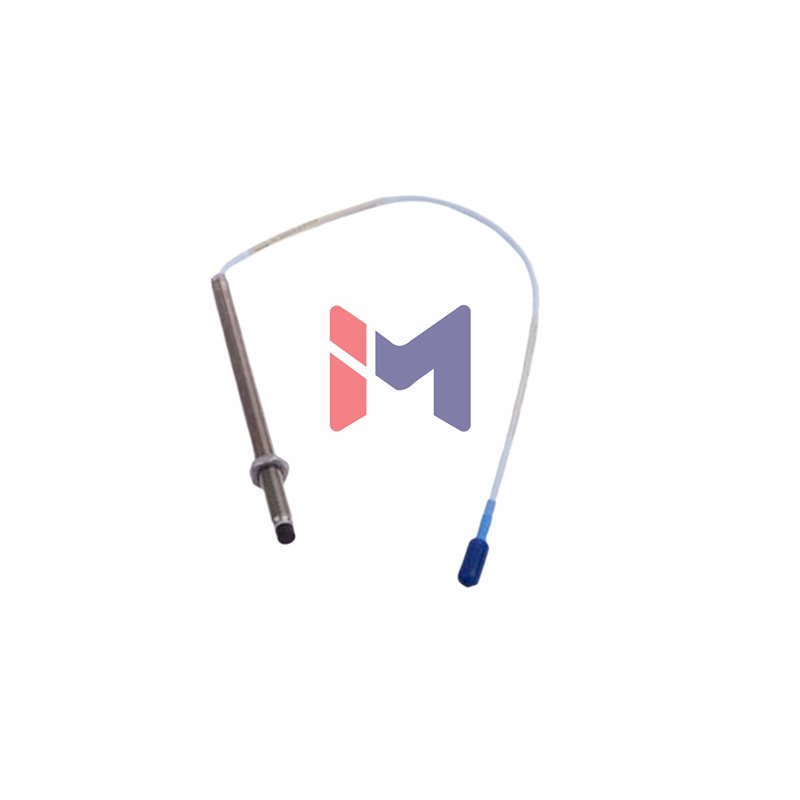

Bently Nevada 3300 NSv Proximity Probe: High-Performance Vibration Monitoring
The Bently Nevada 3300 NSv Proximity Probe offers advanced design for precise vibration and position measurement. It features superior chemical resistance and excellent side-view characteristics. This new probe works perfectly with many industrial applications including process compressors. Its compatibility with previous 3300 RAM systems makes upgrades simple and cost-effective.
Complete Suffix Information
- Brand: Bently Nevada
- Model: 330903-00-02-05-11-05
- -00- : Unthreaded Length = 00 mm
- -02- : Overall Case Length = 20 mm
- -05- : Total Cable Length = 0.5 meter (20 in)
- -11- : Miniature Coaxial ClickLoc Connector with Protector, FluidLoc Cable
- -05- : Agency Approval Option = Multiple Approvals
Technical Specifications
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Deviation from Straight Line (Linearity): Less than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305m field wiring
- Probe DC Resistance (0.5m): 4.0 Ω ± 0.5 Ω
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
- Probe Tip Material: Polyphenylene Sulfide (PPS)
- Probe Case Material: AISI 304 Stainless Steel
- Maximum Case Torque: 0.56 N•m (5 in•lb)
- Cable Minimum Bend Radius: 25.4 mm (1.0 in)
Packaging & Shipping
- The product is new and original in factory packaging.
- We ship globally via reliable carriers: FedEx, UPS, and DHL.
- Your order includes the 3300 NSv Proximity Probe and connector protector.
Frequently Asked Questions (FAQ)
- Is the 3300 NSv probe compatible with older systems?
Yes, the 3300 NSv probe is fully compatible with the previous 3300 RAM probe systems. - What is the main advantage of the NSv probe?
It offers increased chemical resistance for use in challenging environments like process compressors. - How do I choose the correct model suffix?
Select suffixes based on required length, connector type, and agency approvals needed.
