Description

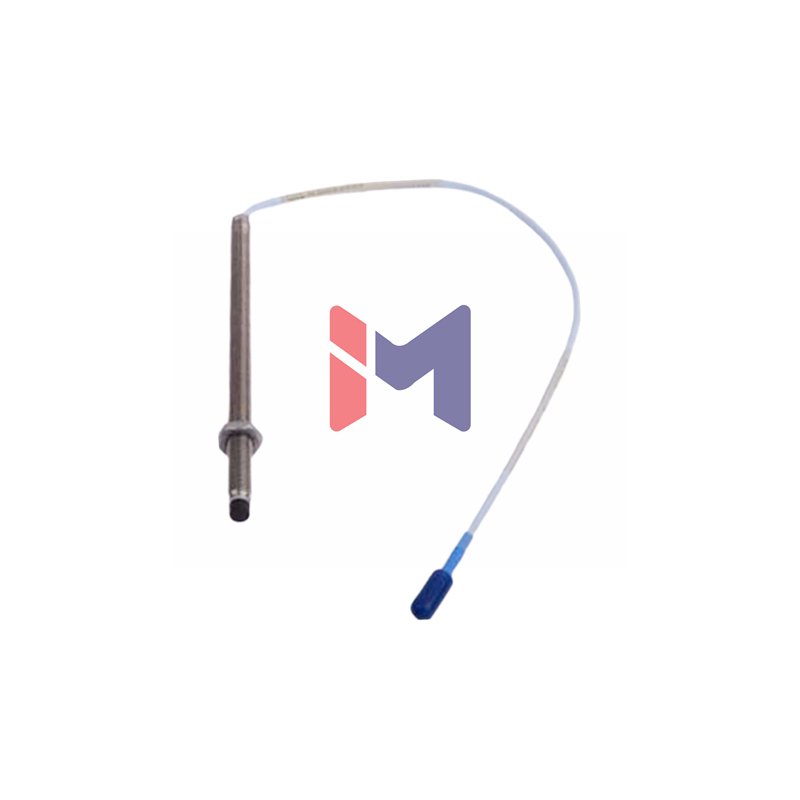

Bently Nevada 3300 NSv Proximity Probe – Model 330903-00-02-05-02-05
The Bently Nevada 3300 NSv Proximity Probe delivers top-tier performance for critical industrial monitoring applications. This new and original sensor comes in factory-sealed packaging, ensuring maximum reliability for precision measurement in demanding environments. Its advanced design provides exceptional chemical resistance and stable operation.
Complete Suffix Information
- Brand: Bently Nevada
- Model: 3300 NSv
- Full Part Number: 330903-00-02-05-02-05
- -00-: Unthreaded Length: 00 mm
- -02-: Overall Case Length: 20 mm
- -05: Total Cable Length: 0.5 meter (20 in)
- -02: Connector Type: Miniature coaxial ClickLoc connector
- -05: Agency Approval: Multiple Approvals
Technical Specifications
- Linear Range: 1.5 mm (60 mils), starting at 0.25 mm from the target.
- Recommended Gap Setting: 1.0 mm (40 mils).
- Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil).
- Deviation from Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical).
- Probe DC Resistance: 4.0 ± 0.5 ohms (for 0.5m length).
- Operating Temperature: -52°C to +177°C (-62°F to +351°F).
- Minimum Target Size: 8.9 mm diameter (13 mm recommended).
- Probe Tip Material: Polyphenylene sulfide (PPS).
- Case Material: AISI 304 stainless steel.
- Maximum Case Torque: 5.1 N•m (45 in•lb) recommended.
