Description

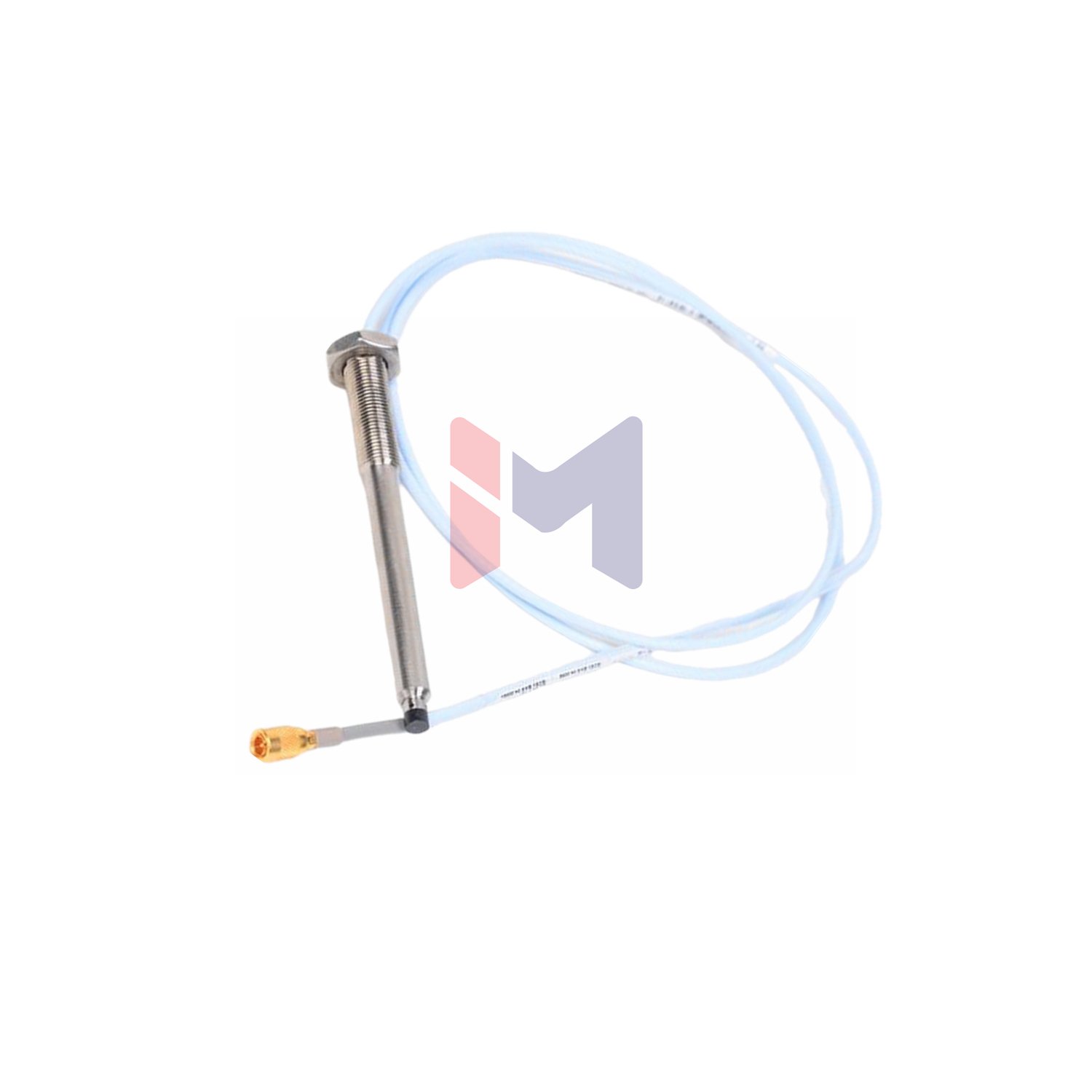

Introducing the Bently Nevada 3300 NSv M8X1 Proximity Probe
The Bently Nevada 3300 NSv Proximity Probe (Model 330903-00-02-05-01-00) delivers precision vibration monitoring for industrial machinery. This M8X1 threaded version offers compact sizing without sacrificing performance, featuring enhanced chemical resistance and superior side-view characteristics.
📁 Complete Model Suffix Breakdown
- 330903: Base model number for M8X1 thread probe
- -00-: 00 mm unthreaded length
- -02-: 20 mm overall case length
- 05: 0.5 meter total cable length
- 01: Miniature coaxial ClickLoc connector with protector
- -00: No agency approvals required
⚙️ Technical Specifications
- Thread Size: M8X1 without armor
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity (DSL): Better than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Probe Resistance: 4.0 ± 0.5 ohms (0.5m cable)
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Cable Type: 75 Ω coaxial with FEP insulation
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm (0.35 in) diameter
- Extension Cable Resistance: Center: 0.220 Ω/m, Shield: 0.066 Ω/m
- Cable Capacitance: 69.9 pF/m typical
- Max Torque: 0.56 N•m (5 in•lb)
- Thread Engagement: Maximum 12 mm for M8x1
📦 Package & Shipping Information
- New & original unit in factory packaging
- 12-month warranty
- Worldwide shipping via FedEx, UPS, or DHL
- Standard delivery: 3-5 business days
- Express options available
