Overview

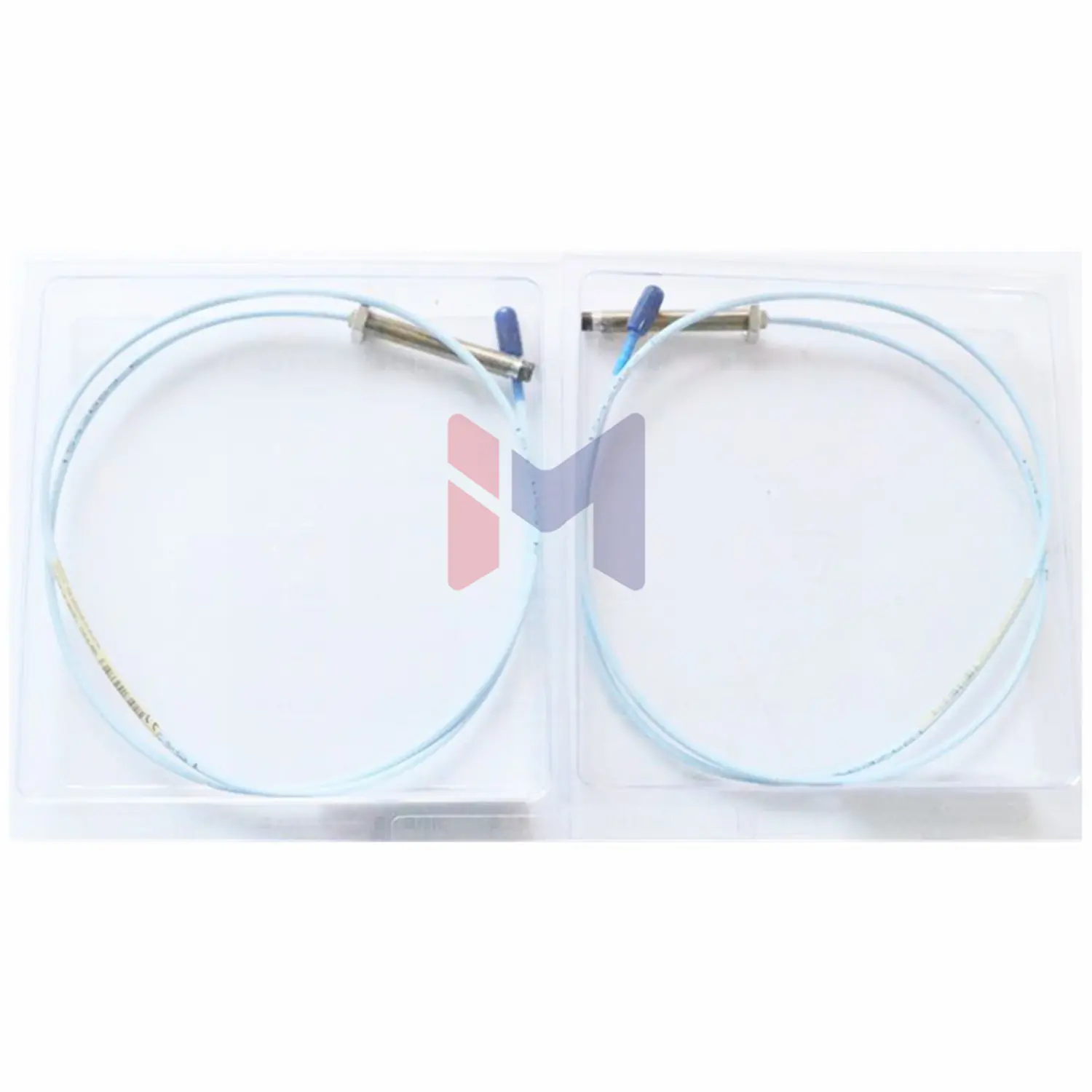

The Bently Nevada 330851-08-000-064-10-01-05 is a high – quality 3300 XL 25 mm Proximity Probe produced in the U.S.A. It provides a vast selection of case setups, allowing it to replace different standard transducer systems. Tailored for the most severe steam turbine environments, this probe can run continuously at high temperatures and withstand short – term heat extremes.
Technical Specification
- Brand: Bently Nevada
- Model: 330851-08-000-064-10-01-05
- Product Type: 3300 XL 25 mm Proximity Probe
- Probe Case Type (08): Smooth 1.5 – inch diameter with a side – exit design, which is beneficial for specific installations.
- Unthreaded Length (000): 0 inches, giving it a more compact form.
- Overall Case Length (064): 64 mm, suitable for various application spaces.
- Total Probe Length (10): 1.0 metre (3.3 feet), fitting certain system requirements.
- Armor Option (01): Equipped with SST Armor, enhancing its durability and lifespan.
- Agency Approval (05): Multiple Approvals, indicating compliance with multiple industry regulations.
- Probe DC Resistance: At 1.0 metre, the resistance is 6.2 ± 0.5 ohms, ensuring stable electrical operation.
- Probe Tip Material: Polyetheretherketone (PEEK), known for its great mechanical and thermal stability.
- Probe Case Material: AISI 304 stainless steel (SST), offering good corrosion resistance.
- Probe Cable: 75 Ω triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable, available in 1m, 5m, or 9m lengths.
- Torque Specifications: The maximum rated torque is 163 N•m (120 ft•lb), and the recommended torque is 68 N•m (50 ft•lb).
- Probe Weight: 230 g (8.1 oz) for the minimum – length case with a 1m lead and no armor; 330 g (11.6 oz) with armor.
- Probe Temperature Range: It can operate and be stored between – 35°C and + 200°C (- 31°F and + 392°F). It can tolerate short – term temperatures up to + 250 °C (482 °F) for less than 24 hours.
Compliance and Certifications
- FCC: This probe follows part 15 of the FCC Rules. It won’t cause harmful interference and must accept incoming interference.
- EMC: It meets EN 61000 – 6 – 2, EN 61000 – 6 – 4, and the EMC Directive 2014/30/EU, ensuring electromagnetic harmony.
- RoHS: It adheres to the RoHS Directive 2011/65/EU, showing its environmental – friendly features.
- Maritime: It complies with the ABS 2009 Steel Vessels Rules 1 – 1 – 4/7.7, 4 – 8 – 3/1.11.1, 4 – 9 – 7/13, making it suitable for maritime use.
Temperature Schedule
- For EPL Ga and Gc:
- T1: The probe can work at ambient temperatures from – 55°C to + 232°C.
- T2: It can operate from – 55°C to + 177°C.
- T3: The working range is – 55°C to + 120°C.
- T4: It functions from – 55°C to + 80°C.
- T5: The temperature range is – 55°C to + 40°C.
- For EPL Dc:
- T280°C at ambient temperatures from – 55°C to + 232°C.
- T225°C at ambient temperatures from – 55°C to + 177°C.
- T170°C at ambient temperatures from – 55°C to + 120°C.
- T130°C at ambient temperatures from – 55°C to + 80°C.
