Description
Product Overview

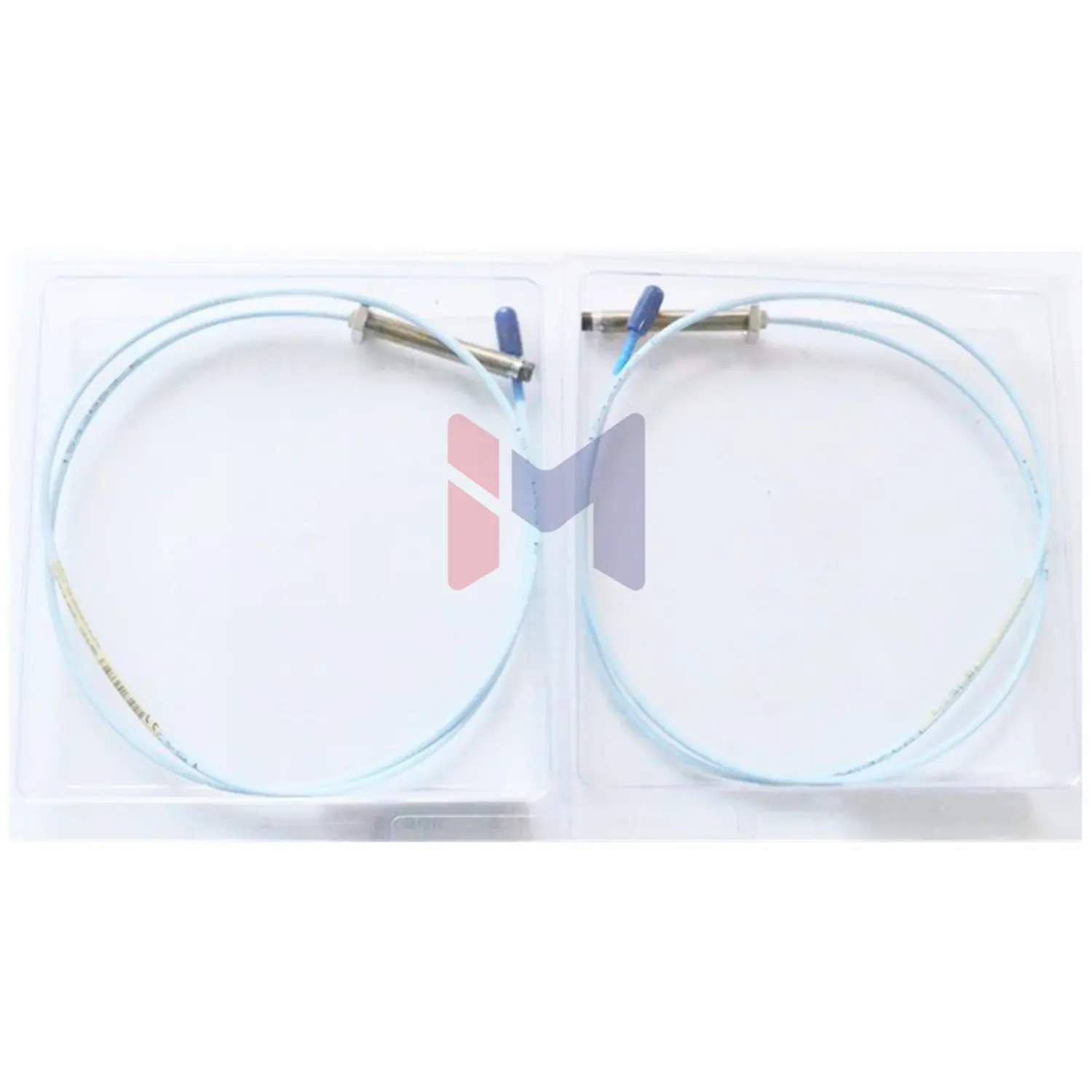

The Bently Nevada 330851-02-000-080-50-01-05 3300XL 25mm proximity probe provides premium vibration monitoring for industrial applications. Engineered for extreme conditions, this probe operates reliably in temperatures up to 200°C continuously and withstands short-term exposure to 250°C. Its robust stainless steel construction and PEEK tip material deliver exceptional durability in steam turbines, compressors, and other high-vibration machinery.
Key Features
- Industrial-grade 25mm vibration monitoring
- Extended temperature range operation
- Stainless steel armored cable for protection
- Multiple international certifications
- Direct replacement for 7200-series probes
Technical Specifications
- Brand: Bently Nevada
- Model: 330851-02-000-080-50-01-05
- Configuration:
- 02: M30x2 threaded case
- 000: 0″ unthreaded length
- 080: 80mm overall length
- 50: 5.0 meter cable
- 01: Stainless steel armor
- 05: Multiple agency approvals
- Electrical: 7.5Ω ±0.8Ω at 20°C
- Temperature Range:
- Standard: -35°C to +200°C (-31°F to +392°F)
- Peak: 250°C (482°F) for ≤24 hours
- Materials:
- Tip: PEEK (Polyetheretherketone)
- Case: AISI 304 stainless steel
- Cable: PFA-insulated triaxial
Certifications & Compliance
- ATEX/IECEx Zone 0 (with barriers)
- RoHS Directive 2011/65/EU
- ABS Marine approval
Applications
- Heavy industrial machinery
- High-temperature environments
- Retrofitting 7200-series systems
