Description
Overview

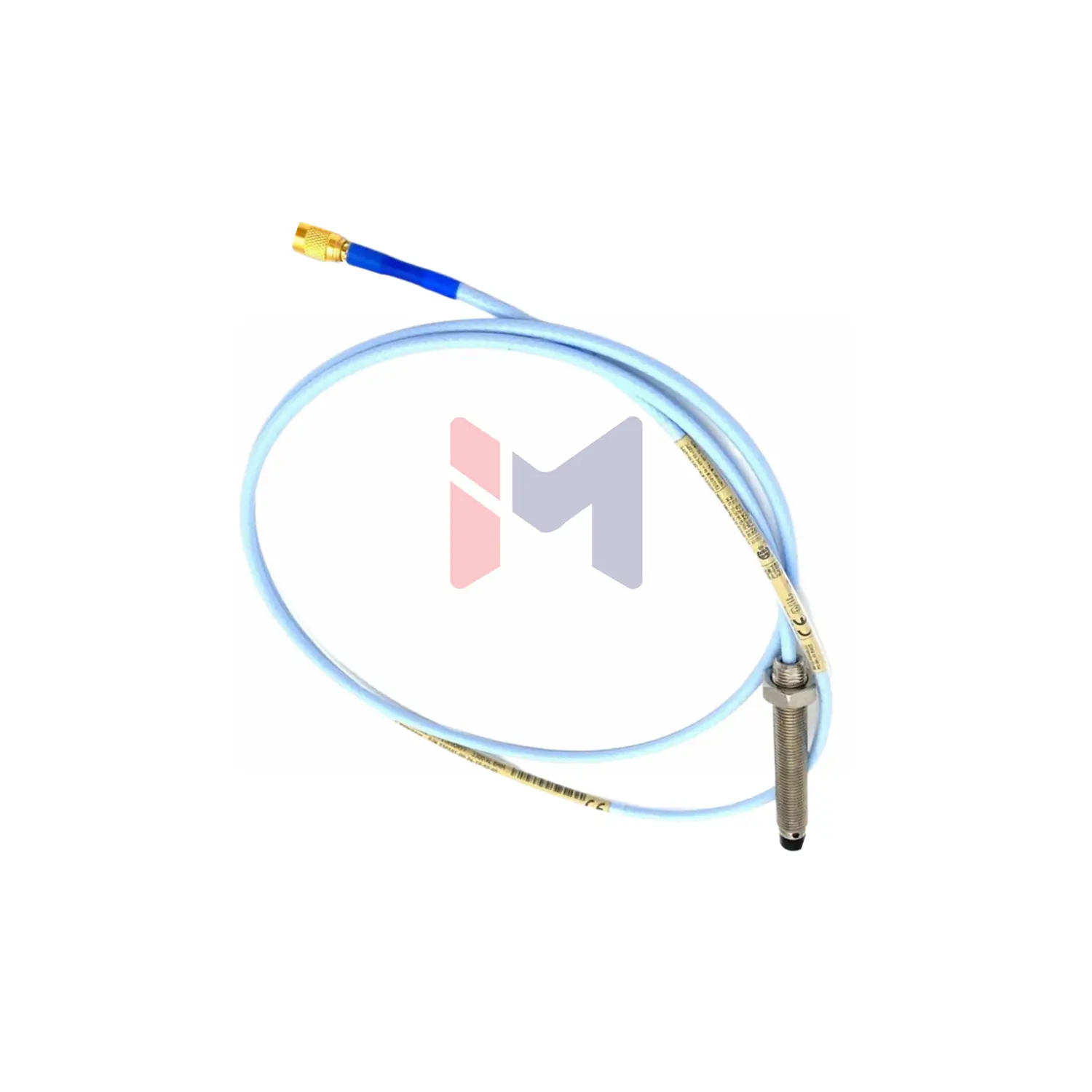

The Bently Nevada 330851-02-000-080-10-00-05 proximity probe is engineered for extreme conditions in steam turbine applications. With its robust stainless steel casing and high-temperature resistance, it reliably replaces older 7200 series probes. The PEEK tip material ensures durability while maintaining precise measurements.
Key Features
- Industrial-grade construction for harsh environments
- Wide temperature range operation
- Multiple agency certifications
Technical Specifications
- Brand: Bently Nevada
- Model: 330851-02-000-080-10-00-05
- Suffix Breakdown:
- 02: M30x2 threaded case
- 000: 0″ unthreaded length
- 080: 80mm case length
- 10: 1.0m cable
- 01: Stainless steel armor
- 05: Multiple approvals
- Probe Resistance: 6.2Ω ±0.5Ω at 1m length
- Weight: 230g (unarmored), 330g (armored)
- Cable Type: 75Ω triaxial PFA FluidLoc
- Temperature Range: -35°C to +200°C continuous, +250°C intermittent
- Thread Torque: 68N·m recommended, 163N·m maximum
- Tip Material: PEEK polymer
- Case Material: AISI 304 stainless steel
- Certifications: FCC, EMC, RoHS, ABS
Performance Data
- Operating voltage range: 18-24VDC
- Frequency response: 0-10kHz
- Output impedance: 50Ω nominal
Technical Support:
Contact our application engineers at sales@plc-pioneer.com for installation guidance.
