Description

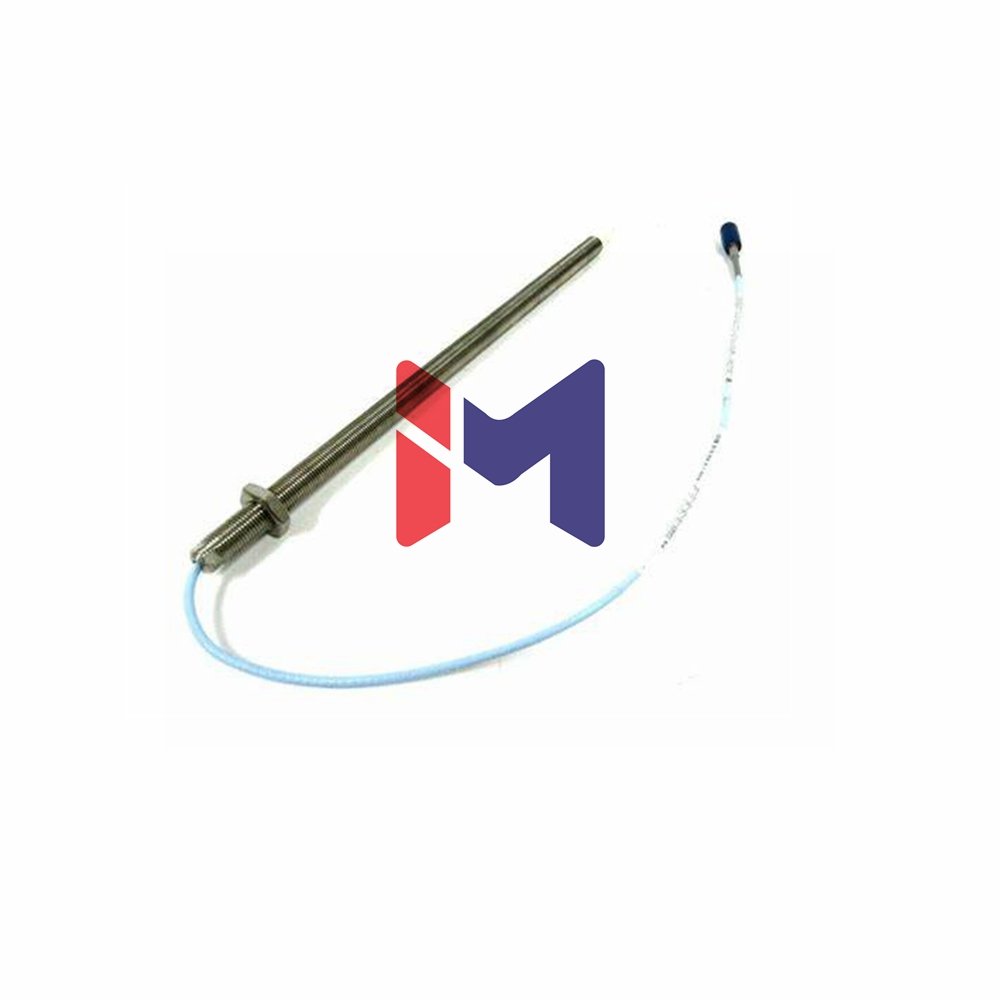

Bently Nevada 3300 NSv Proximity Probe with Connector Protector
The 330905-00-10-05-01-00 offers reliable vibration monitoring with connector protection. This 330905-00-10-05-01-00 features a 100mm case length and built-in connector protector. It ensures secure connections in industrial environments.
Technical Specifications
- Part Number: 330905-00-10-05-01-00
- Manufacturer: Bently Nevada
- Model Series: 3300 NSv Proximity Probe
- Thread Type: M10X1 metric
- Case Length: 100 mm
- Cable Length: 0.5 meter (20 inches)
- Connector Type: ClickLoc with protector
- Electrical Resistance: 4.0 Ω ± 0.5
- Measurement Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Voltage Sensitivity: 7.87 V/mm (+12.5%/-20%)
- Linearity Error: < ±0.06 mm
- Frequency Range: 0-10 kHz (±3 dB)
- Target Size: Min 8.9 mm, Recommended 13 mm
- Temperature Range: -52°C to +177°C
- Installation Torque: Finger tight to 0.56 N•m
- Cable Bend Radius: 25.4 mm minimum
- Housing Material: AISI 304 Stainless Steel
- Tip Material: Chemical resistant PPS
Part Number Structure
- ► 330905: NSv Probe Base Number
- ► 00: 0 mm Unthreaded Length
- ► 10: 100 mm Case Length
- ► 05: 0.5 Meter Cable
- ► 01: ClickLoc with Connector Protector
- ► 00: No Agency Approval Required
Technical Support
Download complete technical specifications and installation manual: 3300 NSv Probe with Connector Protector Datasheet
