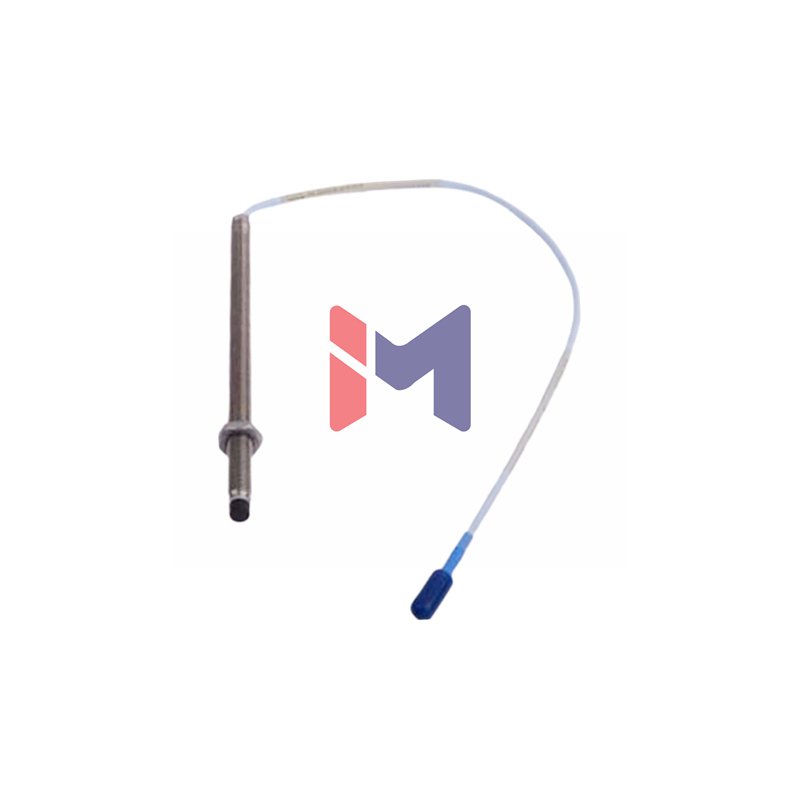

Bently Nevada 3300 NSv Proximity Probe – 330905-05-13-05-12-00
The Bently Nevada 330905-05-13-05-12-00 represents premium industrial monitoring technology. This 3300 NSv series probe features a specialized FluidLoc cable and extended 130mm length. It offers superior performance in harsh chemical environments and high-vibration applications.
Product Identification & Suffix Code Breakdown
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330905-05-13-05-12-00
- Configuration Tree:
- → Base Model: 330905 (3300 NSv Probe, M10X1 thread, without armor)
- → → Unthreaded Length: -05- (50 mm)
- → → Case Length: -13- (130 mm)
- → → Cable Length: -05- (0.5 meter)
- → → Connector/Cable: -12- (Miniature coaxial ClickLoc connector, FluidLoc cable)
- → → Agency Approval: -00- (Not required)
Technical Specifications & Performance Data
- Electrical Output: 7.87 V/mm (200 mV/mil) incremental scale factor
- Measurement Range: 1.5 mm (60 mils) linear range
- Recommended Gap: Set at 1.0 mm (40 mils) for optimal performance
- Linearity: Excellent deviation of less than ±0.06 mm (±2.3 mils)
- Frequency Response: Flat response from 0 to 10 kHz
- Temperature Rating: Operates in extreme conditions from -52°C to +177°C
- Probe Resistance: 4.0 ± 0.5 Ohms for 0.5m cable configuration
- Target Requirements: Minimum 13 mm (0.5 in) diameter recommended
- Cable Specification: 75 Ω coaxial with FEP insulation
- Sealing Material: Viton O-ring for differential pressure sealing
Installation & Mounting Guidelines
- Apply finger tight torque during installation
- Never exceed maximum torque of 0.56 N•m (5 in•lb)
- Maintain minimum bend radius of 25.4 mm (1.0 in)
- Use proper connector torque of 7.5 N•m (66 in•lb)
- Ensure maximum thread engagement of 15 mm
Packaging & Delivery Information
- Condition: New & Original in factory packaging
- Shipping: Worldwide via FedEx, UPS, and DHL
- Package Contents: 3300 NSv proximity probe with FluidLoc cable
Comparison With Alternative Models
- Explore different configurations to meet your specific requirements:
- 330905-05-08-05-01-05: Features different approval options
- 330905-05-25-10-01-00: Offers different cable length and connector type
