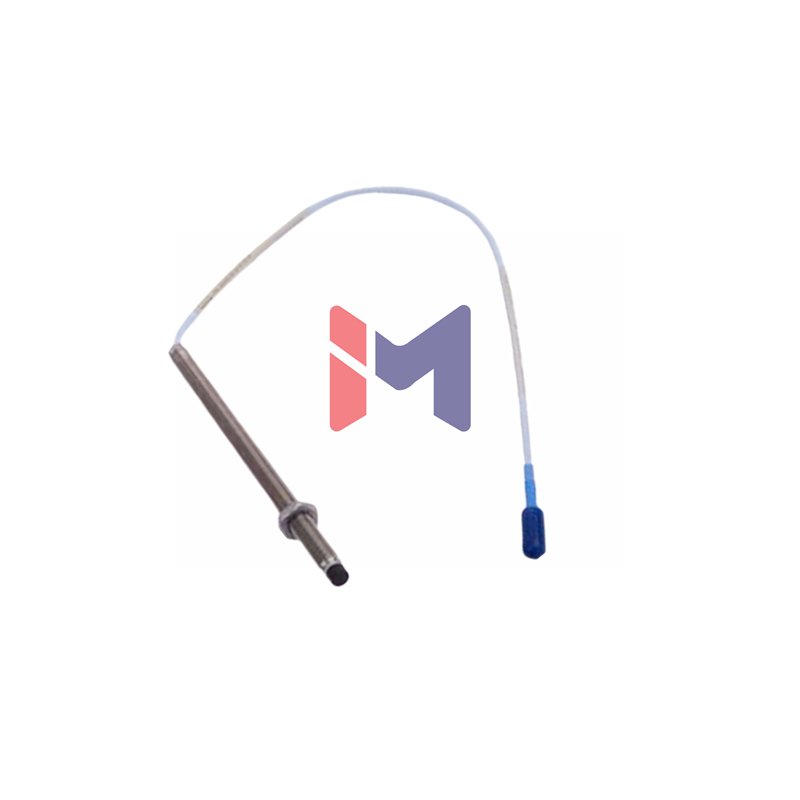

Bently Nevada 330905-05-10-10-12-00 Industrial Proximity Probe
Discover the Bently Nevada 330905-05-10-10-12-00, a precision-engineered proximity probe from the renowned 3300 NSv series. This model combines a versatile 100mm case length with a 1-meter FluidLoc cable, delivering exceptional performance in demanding industrial environments. Its enhanced chemical resistance makes it perfect for process compressor applications.
Product Configuration & Identification
- Manufacturer: Bently Nevada
- Complete Part Number: 330905-05-10-10-12-00
- Series: 3300 NSv Proximity Probes
- Configuration Breakdown:
- • Base Model: 330905 (M10X1 thread, without armor)
- • Unthreaded Section: -05- (50 mm)
- • Case Dimensions: -10- (100 mm overall length)
- • Cable Specification: -10- (1.0 meter length)
- • Connection System: -12- (ClickLoc connector + FluidLoc cable)
- • Certification: -00- (No agency approval required)
Advanced Technical Specifications
- Electrical Sensitivity: 7.87 V/mm (200 mV/mil) output ratio
- Measurement Capability: 1.5 mm (60 mils) full linear range
- Optimal Setup: 1.0 mm (40 mils) recommended gap setting
- Precision Accuracy: Less than ±0.06 mm (±2.3 mils) deviation
- Dynamic Response: 0 to 10 kHz frequency range
- Environmental Rating: Operation from -52°C to +177°C
- Electrical Resistance: 4.2 ± 0.5 Ohms (1.0 meter cable)
- Target Specification: 13 mm (0.5 in) minimum diameter
- Cable Impedance: 75 Ω coaxial with FEP insulation
- Sealing System: Viton O-ring for pressure differentials
Installation & Mounting Specifications
- Apply installation torque of finger tight only
- Maximum allowable torque: 0.56 N•m (5 in•lb)
- Maintain cable bend radius: 25.4 mm (1.0 in) minimum
- Recommended connector torque: 7.5 N•m (66 in•lb)
- Maximum thread engagement: 15 mm
Shipping & Package Contents
- Product Condition: New & original factory packaging
- Shipping Methods: FedEx, UPS, and DHL available
- Package Includes: 3300 NSv probe with FluidLoc cable assembly
